(37.110.AE[01]) - VAR - 332953 - IMPLEMENT ATTACHMENT DEVICE - QUICK ATTACH LINKS

Запчасти Case IH FARMALL 105U (37.110.AE[01]) - VAR - 332953 - IMPLEMENT ATTACHMENT DEVICE - QUICK ATTACH LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

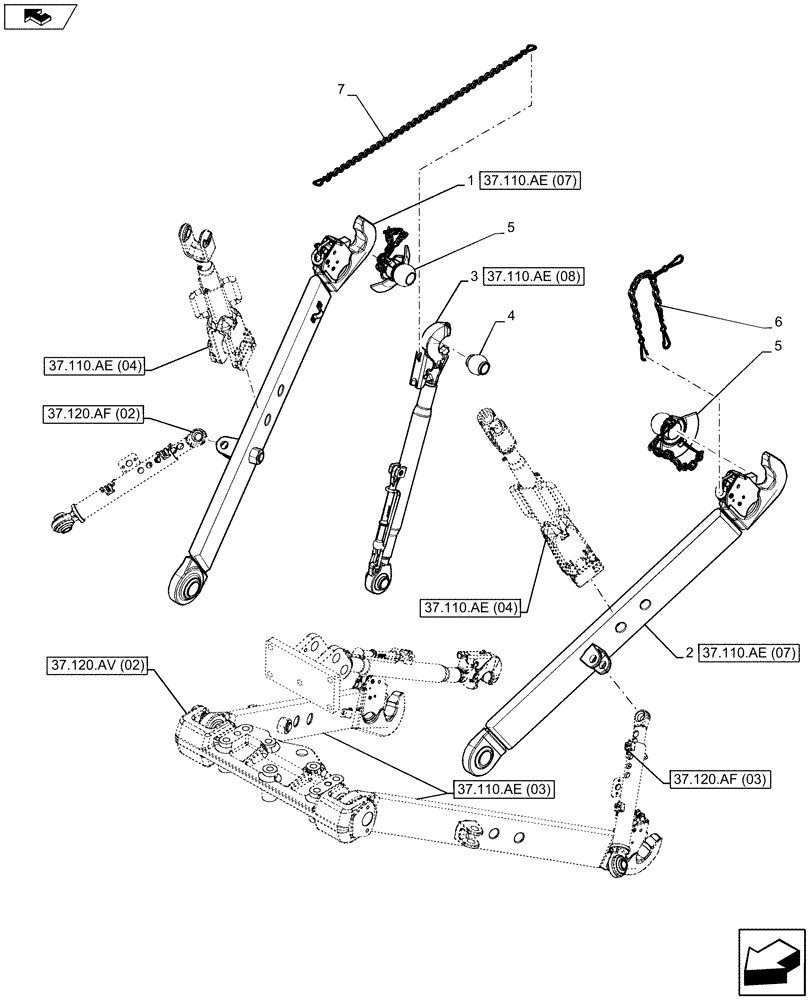

Схема запчастей Case IH FARMALL 105U - (37.110.AE[01]) - VAR - 332953 - IMPLEMENT ATTACHMENT DEVICE - QUICK ATTACH LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.ae (07)
37.110.ae (07)
7
37.120.af (02)
1
37.110.ae (08)
37.110.ae (04)
37.110.ae (04)
5
home
37.110.ae (03)
37.120.av (02)
4
5
6
2
3
37.120.af (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84336265

LIFT ARM

RH

1шт.

see also Figure 37.110.AE 07

1шт.

2

84336285

LIFT ARM

LH

1шт.

see also Figure 37.110.AE 07

1шт.

3

47367779

TOP LINK

1шт.

4

5172480

BALL,25.4mm ID x 50mm OD

1шт.

5

5127760

BALL

2шт.

6

5116063

ROPE,4500mm L

1шт.

7

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.
