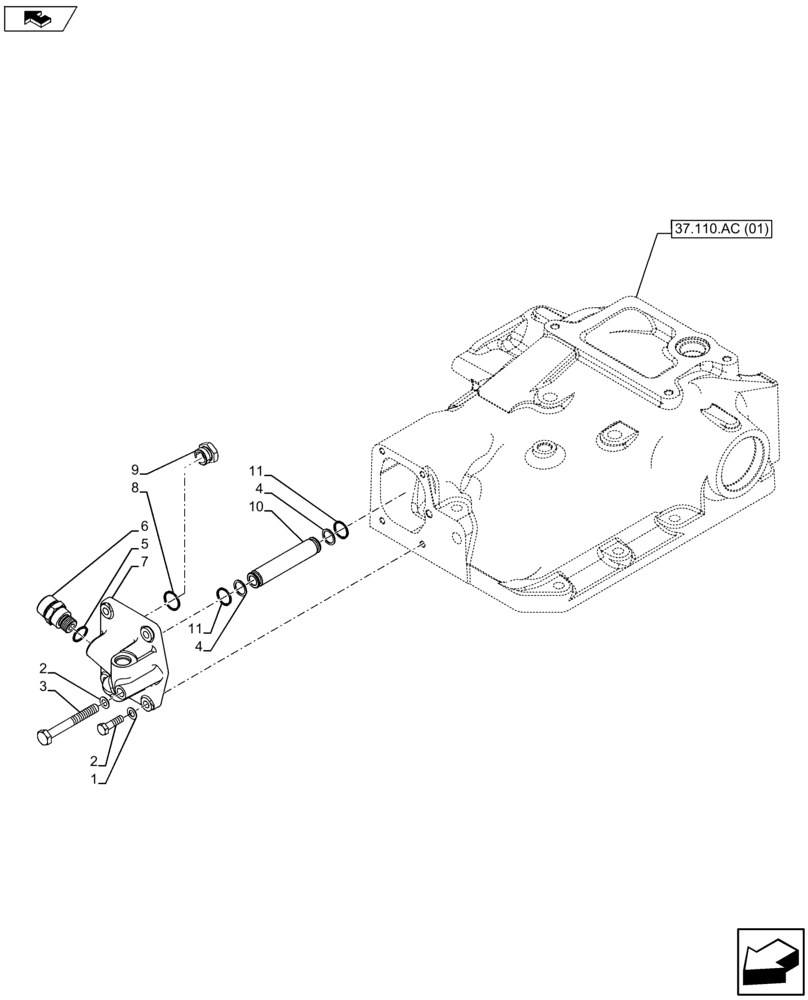

Запчасти Case IH FARMALL 105U (37.110.AC[03]) - VAR - 330849, 331844, 332844 - ELECTRONIC LIFT, REAR, FLANGE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

10516674

LOCK WASHER,M8

5шт.

2

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

3

15971524

SCREW,Hex, M10 x 1.25 x 85mm, Cl 8.8

1шт.

4

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

2шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

84533979

HYD CONNECTOR

1шт.

7

87335184

FLANGE

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

9

5155828

PLUG,M20 x 1.5

1шт.

10

5176630

PIPE,20mm ID x 105mm L

1шт.

11

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.
