(37.100.AB[02]) - VAR - 334814 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT

Запчасти Case IH FARMALL 105U (37.100.AB[02]) - VAR - 334814 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

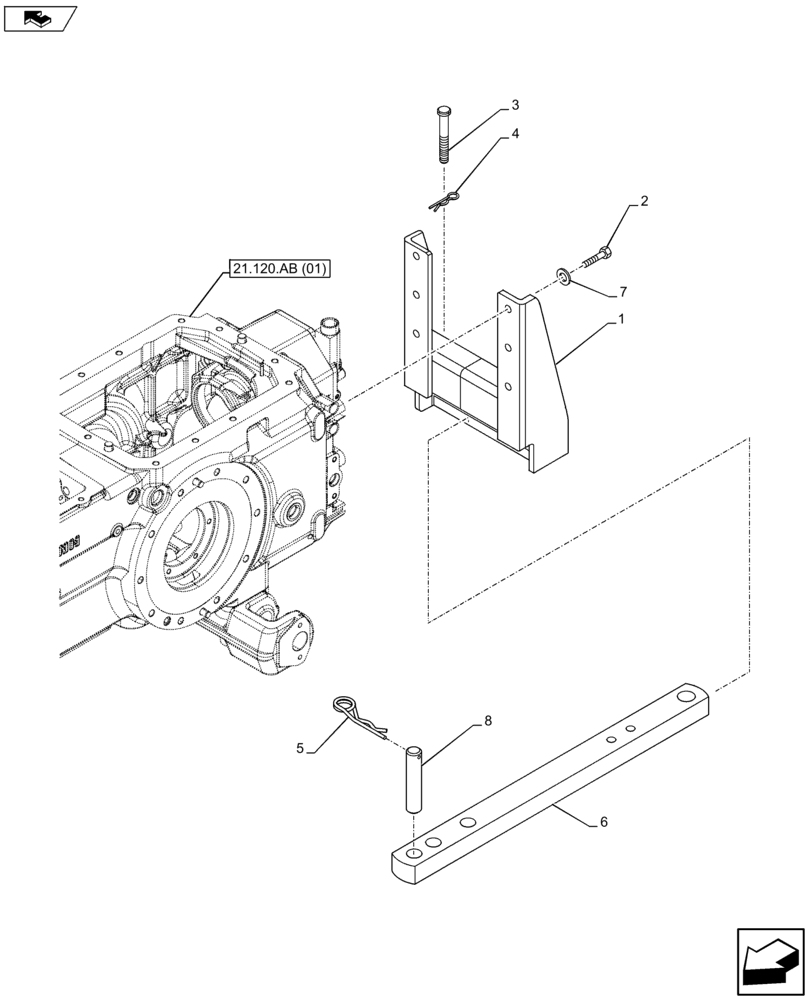

Схема запчастей Case IH FARMALL 105U - (37.100.AB[02]) - VAR - 334814 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
home
3
2
8
4
6
21.120.ab (01)
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199428

SUPPORT

1шт.

2

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

3

5181758

PIN,16mm OD x 119.5mm L

2шт.

4

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

5

82000094

SPRING,40mm OD x 142mm L

1шт.

6

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

8

82006933

PIN,28mm OD x 134mm L

1шт.
