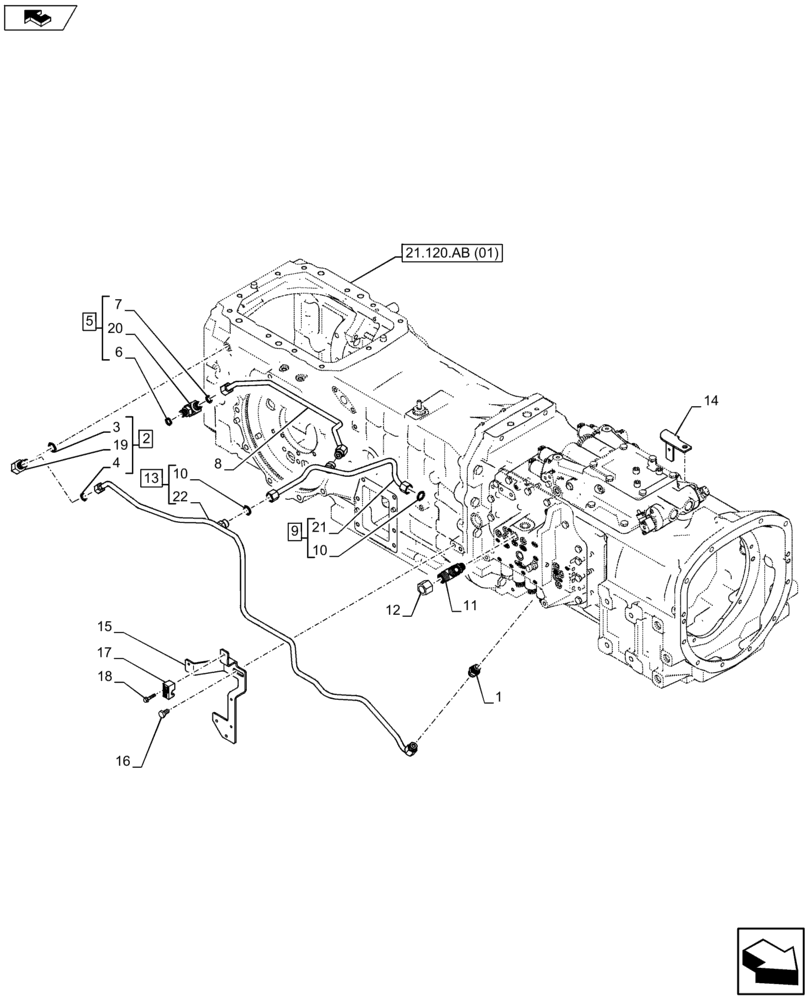

Запчасти Case IH FARMALL 105U (35.300.AQ[04]) - VAR - 334119 - TRANSMISSION, COOLER LUBRIFICATION, TUBE AND HOSES (35) - HYDRAULIC SYSTEMS

1

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

2

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 3, 4, 19

1шт.

3

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 6, 7, 20

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

47404766

PIPE

1шт.

9

47391771

TUBE

ASSY, Incl 10 (Qty 1), 21

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

11

84205612

RUN TEE

1шт.

12

9840576

CAP,1" - 14 ORFS

1шт.

13

47407221

PIPE

ASSY, Incl 10 (Qty 1), 22

1шт.

14

47389683

BRACKET

1шт.

15

47589546

BRACKET

1шт.

16

18700721

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

87532290

BRACKET

1шт.

18

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

19

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

20

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 5

1шт.

21

NSS

NOT SOLD SEPARAT

Hose, Incl in 9

1шт.

22

NSS

NOT SOLD SEPARAT

Hose, Incl in 13

1шт.
