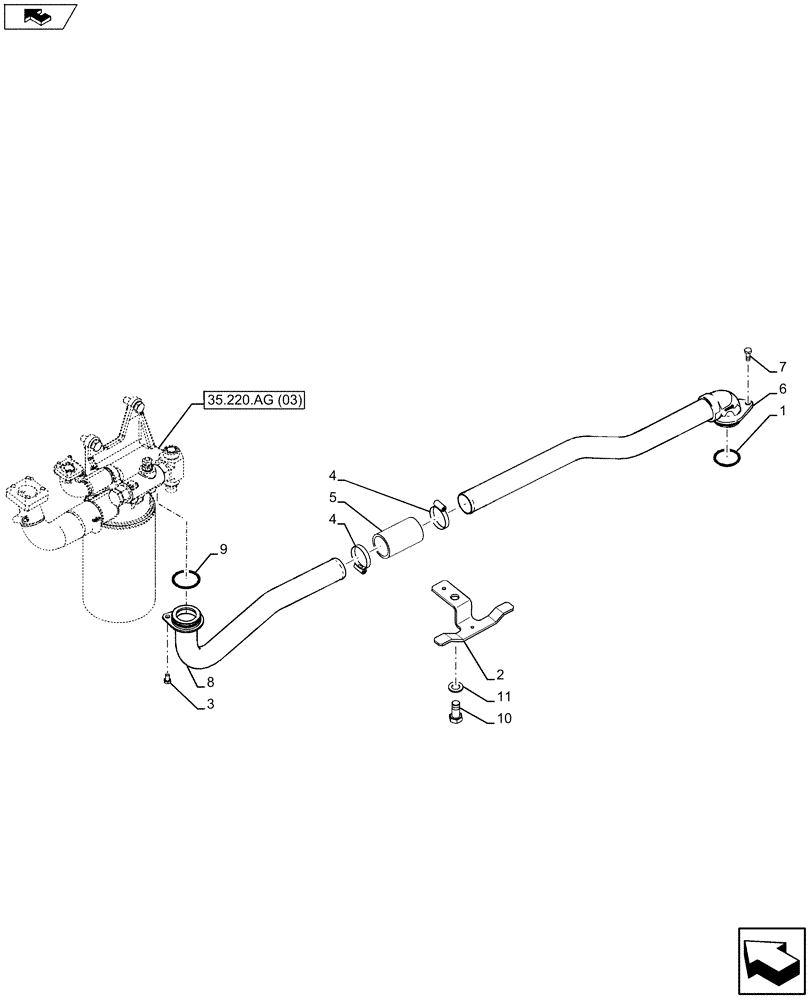

Запчасти Case IH FARMALL 105U (35.220.AG[02]) - VAR - 334119 - HYDRAULIC OIL FILTER, SUCTION PIPE (35) - HYDRAULIC SYSTEMS

1

14464480

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

2

84584114

BRACKET

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

4шт.

5

84389530

SLEEVE,48mm ID x 58mm OD x 10mm L

1шт.

6

47400650

TUBE

Rear suction

1шт.

7

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

84583705

PIPE

Front suction

1шт.

9

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

10

11376231

BOLT,Hex, M16 x 1.5 x 35, 10.9, Full Thd

1шт.

11

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.
