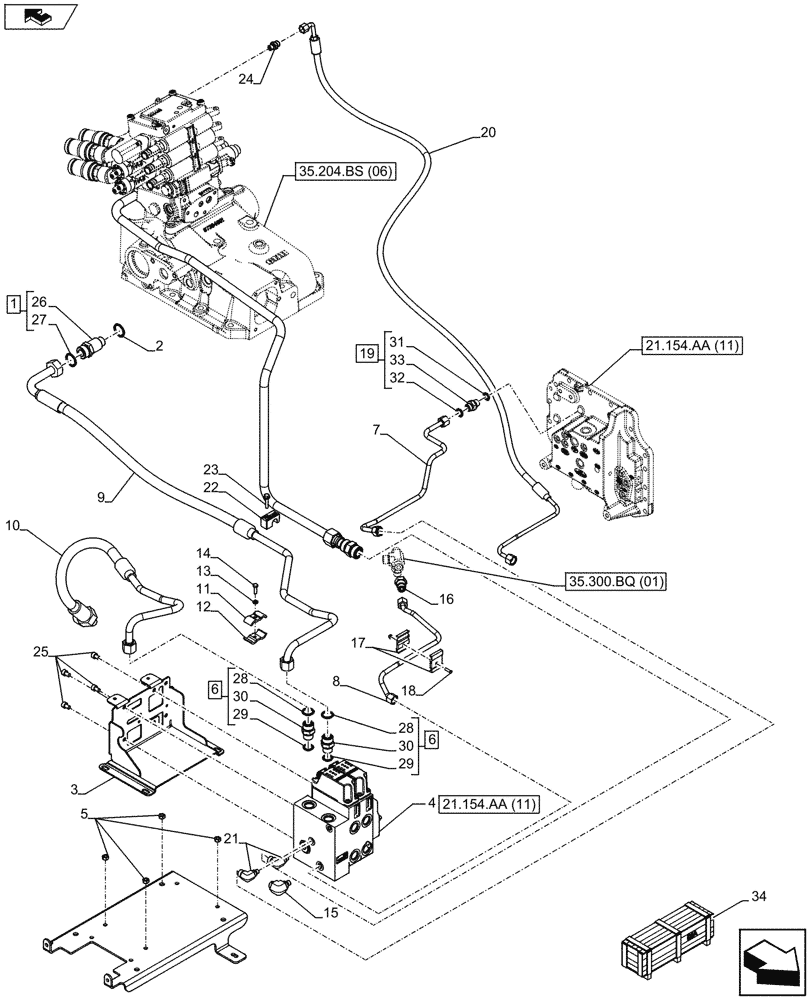

Запчасти Case IH FARMALL 105U (35.204.BS[08]) - VAR - 334127 - REMOTE VALVES (35) - HYDRAULIC SYSTEMS

1

84605368

HYD CONNECTOR

ASSY, Incl 26, 27

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

3

84546202

SUPPORT

1шт.

4

84322506

CONTROL VALVE

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 28 - 30

2шт.

7

84467247

HYD TUBE

1шт.

8

47410822

PIPE

1шт.

9

47523699

HYD TUBE

1шт.

10

47639878

PIPE

1шт.

11

5180153

BRACKET

1шт.

12

5180016

BRACKET

1шт.

13

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

15

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

16

87582905

ORIFICE

1шт.

17

84479191

CLAMP BRACKET

2шт.

18

84401337

NUT

1шт.

19

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 31 - 33

1шт.

20

84590536

HYDRAULIC HOSE

1шт.

21

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

2шт.

22

87326640

CLAMP,16mm ID

1шт.

23

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

24

5185045

HYD CONNECTOR

1шт.

25

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

26

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

31

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

34

718196080

DIA KIT, TRACTOR

2 Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
