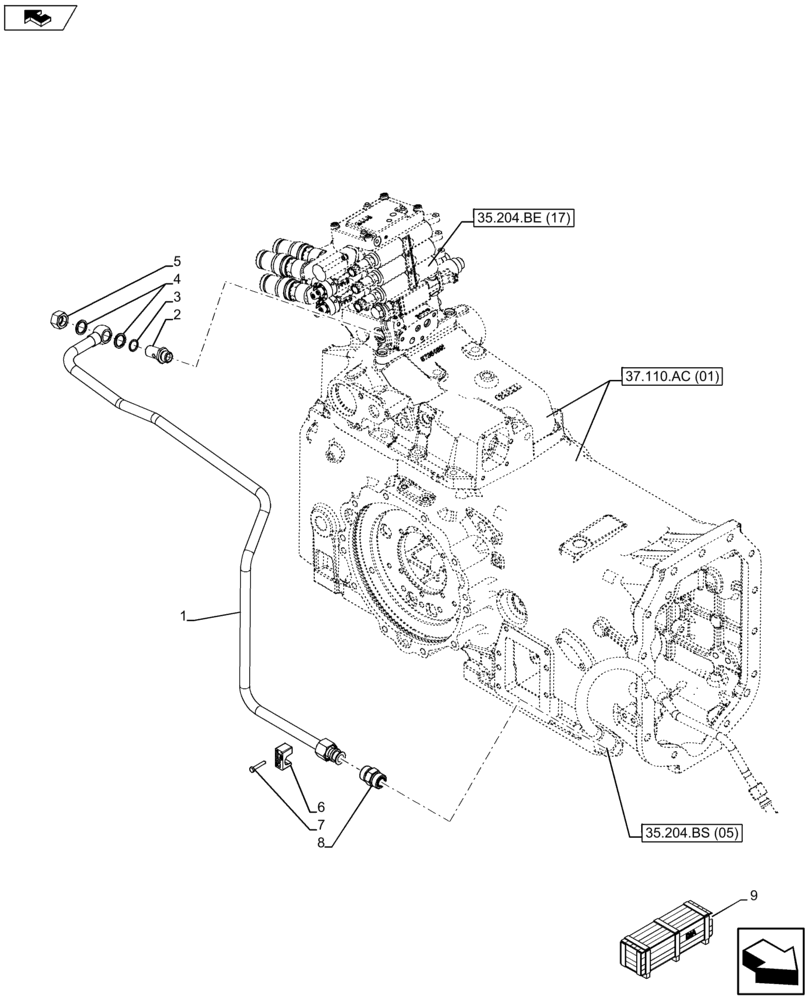

Запчасти Case IH FARMALL 105U (35.204.BS[06]) - VAR - 334127, 743919 - REMOTE VALVES (35) - HYDRAULIC SYSTEMS

1

47488100

TUBE

Pressure, Delivery MMV

1шт.

2

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

4

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

5

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

6

84428662

BLOCK,20.4mm

1шт.

7

10903011

BOLT,Hex, M6 x 35mm, Cl 5.8

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

1шт.

9

718196080

DIA KIT, TRACTOR

2 Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

719302080

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve for Bosch Rear Remotes, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
