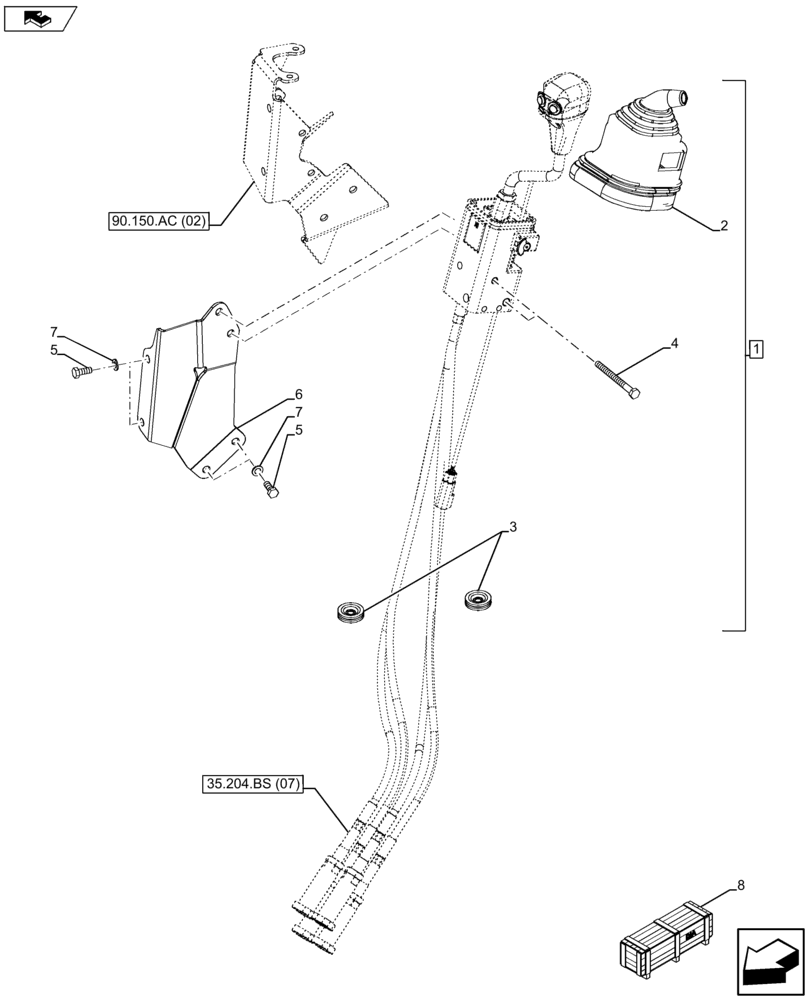

Запчасти Case IH FARMALL 105U (35.204.BS[04]) - VAR - 743919 - JOYSTICK, BRACKET (35) - HYDRAULIC SYSTEMS

1

47525987

JOYSTICK

ASSY, Incl 2, 3

1шт.

2

84370120

BOOT

1шт.

3

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

4

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

84585047

BRACKET

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

719302080

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve for Bosch Rear Remotes, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
