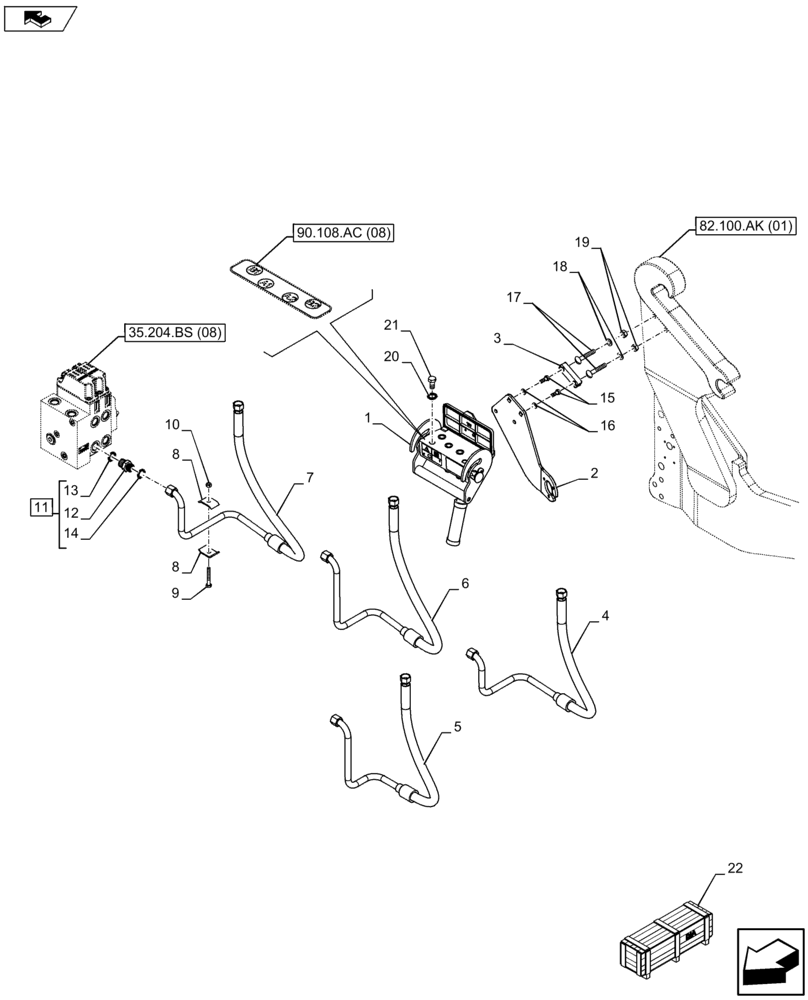

Запчасти Case IH FARMALL 105U (35.204.BS[02]) - VAR - 744712 - REMOTE VALVES (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

1шт.

2

84529495

BRACKET, SUPPORTING

1шт.

3

84529497

BRACKET, SUPPORTING

1шт.

4

84590330

HYDRAULIC HOSE

1шт.

5

84590244

HYD TUBE

1шт.

6

84590165

HYD TUBE

1шт.

7

84590178

HYD TUBE

1шт.

8

47057074

CLAMP,48.6mm x 30mm

2шт.

9

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 12- 14

4шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

16

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

17

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

18

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

2шт.

21

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

22

718845020

DIA KIT, TRACTOR

European Front Loader Bracket (MMV Not Included), with Electrical Mind Mount Valve, Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
