(35.204.BJ[01]) - VAR - 390832, 743597 - HYDRAULIC LIFT, CASING, COVERS

Запчасти Case IH FARMALL 105U (35.204.BJ[01]) - VAR - 390832, 743597 - HYDRAULIC LIFT, CASING, COVERS (35) - HYDRAULIC SYSTEMS

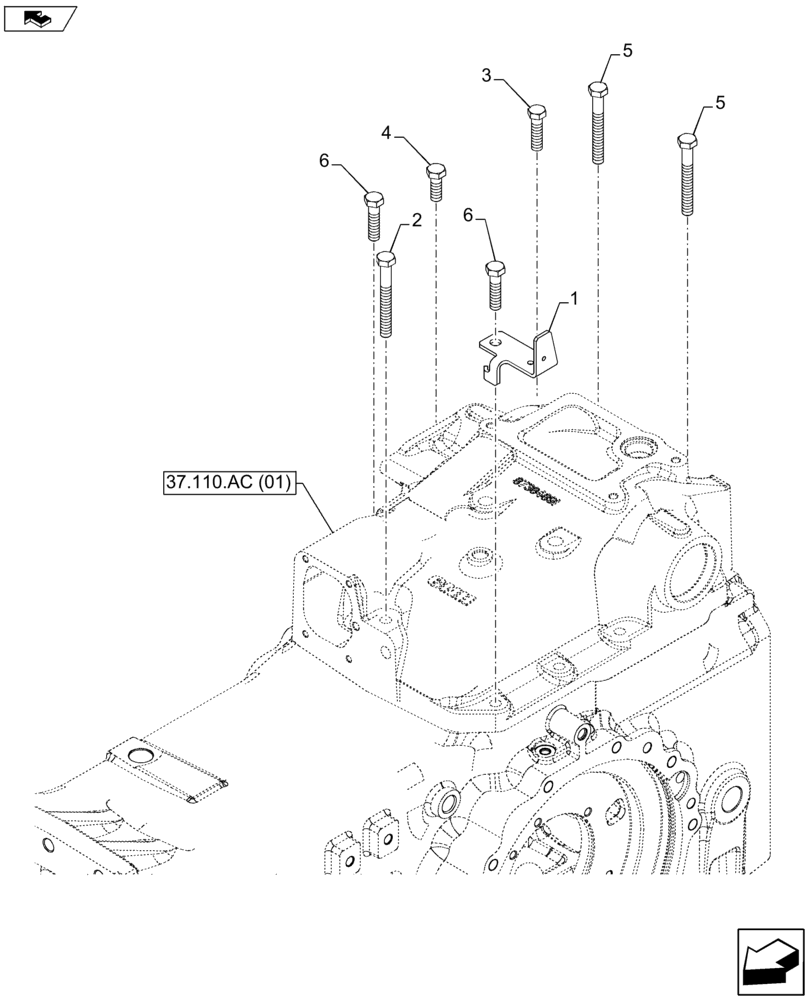

Схема запчастей Case IH FARMALL 105U - (35.204.BJ[01]) - VAR - 390832, 743597 - HYDRAULIC LIFT, CASING, COVERS (35) - HYDRAULIC SYSTEMS
2
home
5
6
1
5
37.110.ac (01)
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47406270

BRACKET

1шт.

2

15541621

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

1шт.

3

86642435

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

4

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

5

15542921

BOLT,Hex, M12 x 1.25 x 95mm, Cl 8.8

2шт.

6

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

Выбрано товаров: 6
