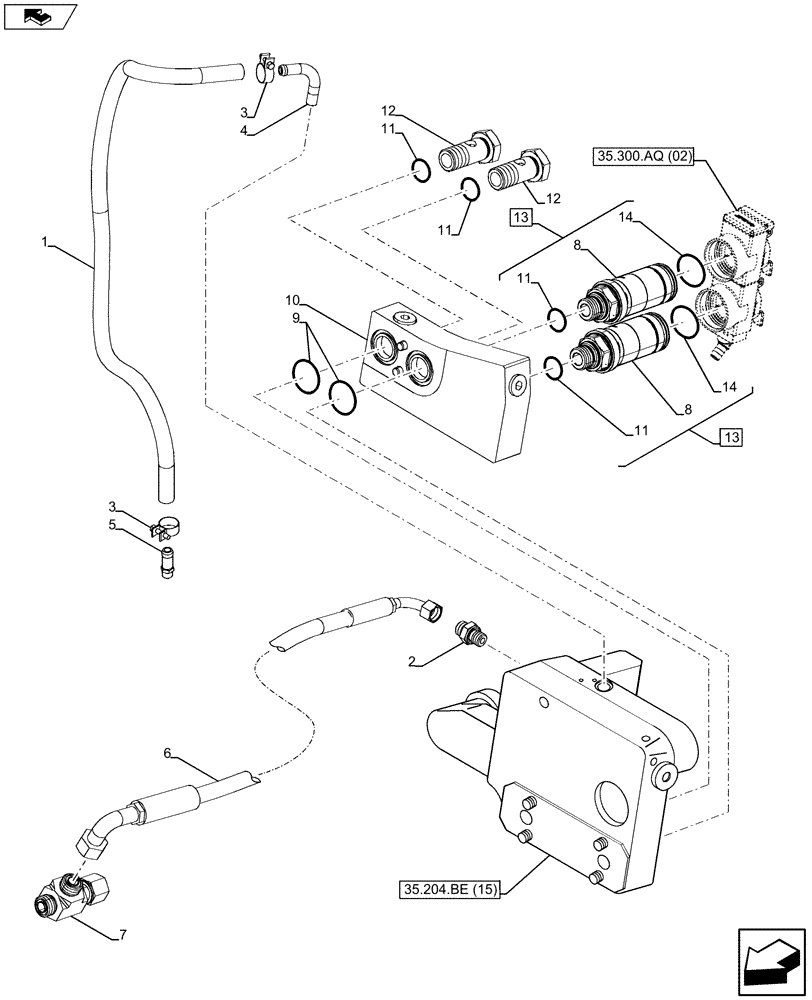

Запчасти Case IH FARMALL 105U (35.204.BE[16]) - VAR - 332844 - REMOTE CONTROL VALVE, W/ DIVERTER, HOSE (35) - HYDRAULIC SYSTEMS

1

84597897

PIPE,9.5mm ID x 725mm L, SAE 100R6

1шт.

2

47135740

HYD CONNECTOR

1шт.

3

10187090

HOSE CLAMP,16mm - 18mm

2шт.

4

87310967

BREATHER

1шт.

5

5157395

FITTING

1шт.

6

84597899

HYDRAULIC HOSE,6.3mm ID x 1300mm L, SAE 100R16

1шт.

7

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

8

NSS

NOT SOLD SEPARAT

Coupler, Incl in 13

2шт.

9

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

10

47423348

HYDRAULIC MANIFOLD

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

12

84596856

BANJO BOLT

2шт.

13

47370116

COUPLING

ASSY, Incl 8, 11 (Qty 2), 14

2шт.

14

87382012

SEAL KIT

2шт.
