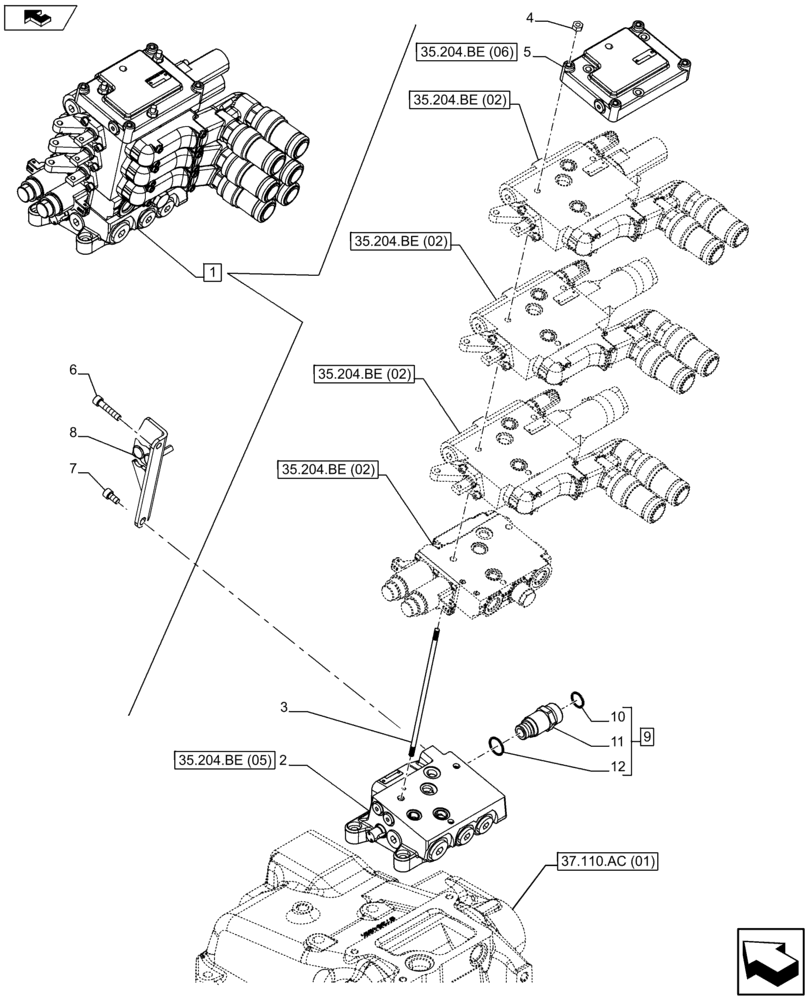

Запчасти Case IH FARMALL 105U (35.204.BE[01]) - VAR - 331844 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES) (35) - HYDRAULIC SYSTEMS

1

87311383

CONTROL VALVE

ASSY, Incl 2 - 5

1шт.

2

5192186

DISTRIBUTOR

1шт.

3

47123183

STUD,M8

3шт.

4

5195169

NUT,M8

3шт.

5

5192188

BODY

1шт.

6

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

7

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

8

47529959

BRACKET

1шт.

9

47125148

HYD CONNECTOR

ASSY, Incl 10 - 12

1шт.

10

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
