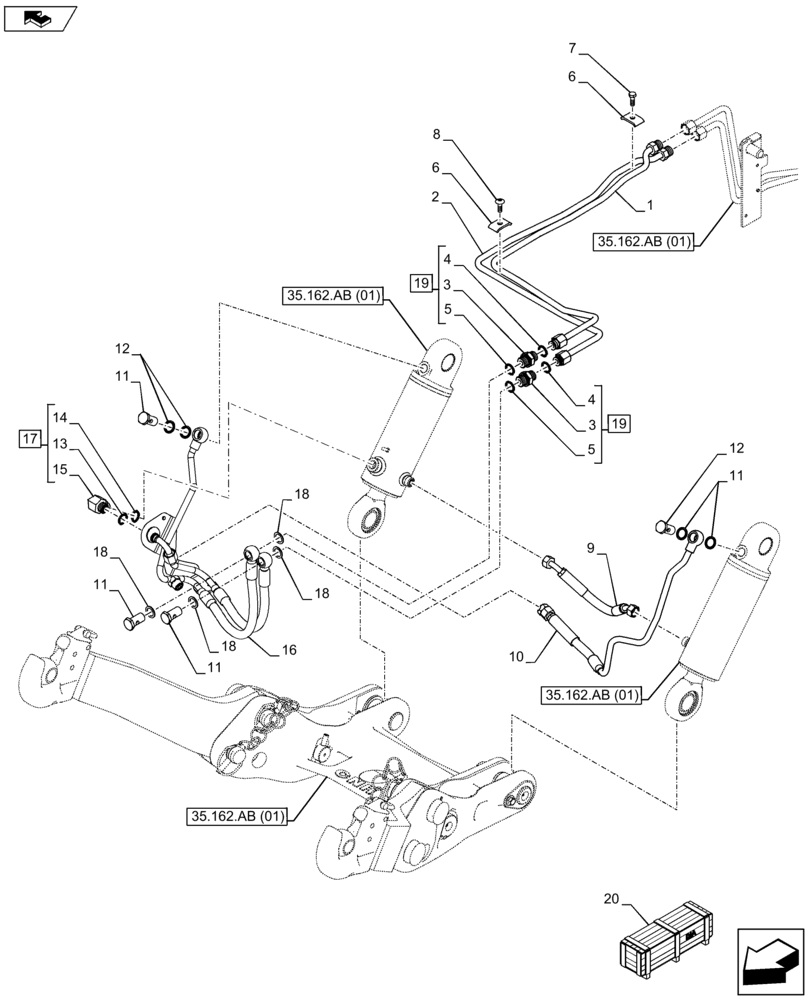

Запчасти Case IH FARMALL 105U (35.162.AB[05]) - VAR - 331789, 744710 - FRONT LOADER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

84413200

TUBE

FHPL Lower

1шт.

2

47589542

HYD TUBE

FHPL Raise

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 19

2шт.

4

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

5

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

6

84519154

HOSE CLAMP

2шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

8

920017519

SCREW,Oval, M8 x 25mm, Stainless

1шт.

9

47397095

HYDRAULIC HOSE,9.53mm ID x 300mm L, SAE 100R2

1шт.

10

47407384

HYD TUBE

Lower

1шт.

11

5170235

BANJO BOLT,M18 x 1.5 x 35mm

4шт.

12

87667806

SEALING WASHER,18mm ID x 26mm OD x 1.5mm

4шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 17

1шт.

16

47407395

HYD TUBE

FHPL, ASSY

1шт.

17

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

ASSY, Incl 13 - 15

1шт.

18

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

4шт.

19

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

ASSY, Incl 3 - 5

2шт.

20

718746080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A less FPTO (Multifunctional Axle Support), Incl 1, 3 - 8, 10 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718747080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A with FPTO (Multifunctional Axle Support), Incl 1, 3 - 8, 10 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
