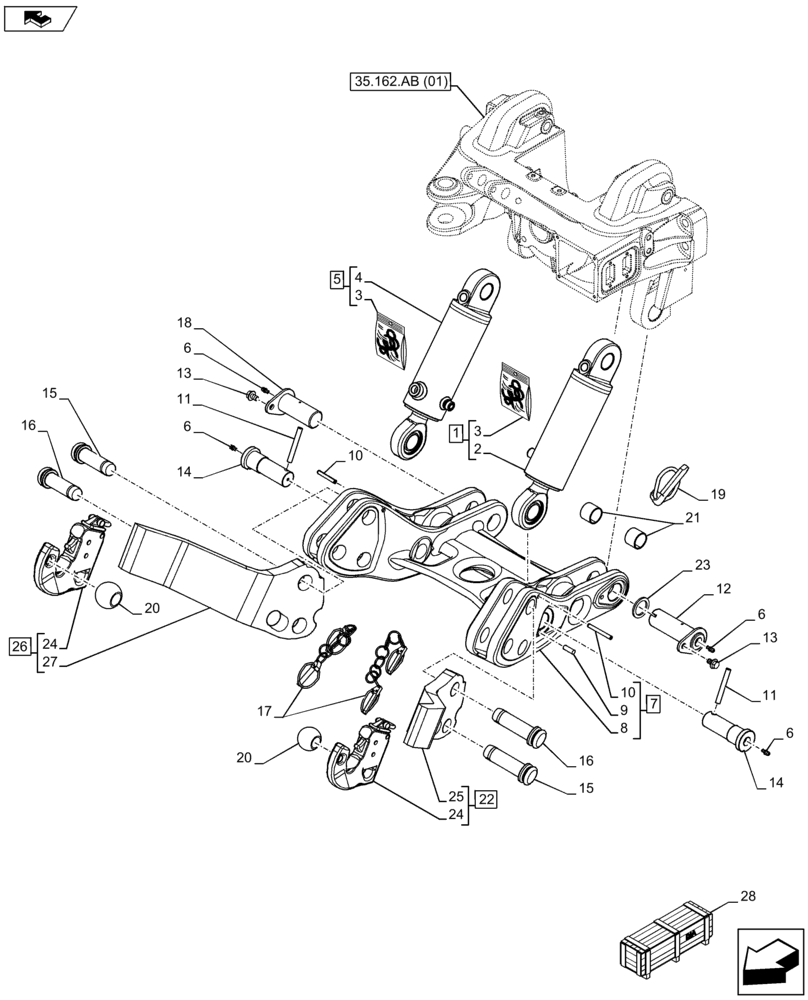

Запчасти Case IH FARMALL 105U (35.162.AB[02]) - VAR - 331789, 744710 - FRONT LOADER, SUPPORT, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84530732

LIFT CYLINDER,Double Acting, 36mm Rod, 142mm Stroke

Double Acting, 36mm Rod, 142mm Stroke ASSY, LH, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

84530736

SEAL KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 5

1шт.

5

84530731

LIFT CYLINDER,Double Acting, 36mm Rod, 142mm Stroke

Double Acting, 36mm Rod, 142mm Stroke ASSY, RH, Incl 3, 4

1шт.

6

87588865

FITTING,M6 x 1 x 12mm L

4шт.

7

84480797

ROCKER

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

9

9780097

DOWEL,M8 x 30

2шт.

10

14607871

ROLL PIN,8mm OD x 70mm L

2шт.

11

440437

PIN,10mm OD x 80mm L

2шт.

12

84372468

PIN,40mm OD x 132mm L

1шт.

13

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

2шт.

14

84392107

PIN,35mm OD x 120mm L

2шт.

15

84372473

PIN,35mm OD x 140mm L

2шт.

16

84313807

PIN,35mm OD x 135mm L

2шт.

17

47457820

LOCK PIN,10.5mm OD

2шт.

18

84399065

PIN,40mm OD x 105mm L

1шт.

19

5166585

LOCK PIN,11mm OD

1шт.

20

87302848

BALL,28mm ID x 56mm OD

2шт.

21

84545855

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

22

84375417

LOWER LINK

ASSY, Incl 24 (Qty 1), 25

1шт.

23

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

2шт.

24

84375422

HOOK

2шт.

25

NSS

NOT SOLD SEPARAT

Arm, LH, Incl in 22

1шт.

26

84375418

LOWER LINK

ASSY, Incl 24 (Qty), 27

1шт.

27

NSS

NOT SOLD SEPARAT

Arm, RH, Incl in 26

1шт.

28

718747080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A with FPTO (Multifunctional Axle Support), Incl 1 - 27

1шт.

28

718746080

DIA KIT, TRACTOR

FHPL Chassis Mounted S/A less FPTO (Multifunctional Axle Support), Incl 1 - 27

1шт.
