(31.146.AA[02]) - VAR - 744710 - FRONT PTO, CLUTCH - COMPONENTS

Запчасти Case IH FARMALL 105U (31.146.AA[02]) - VAR - 744710 - FRONT PTO, CLUTCH - COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

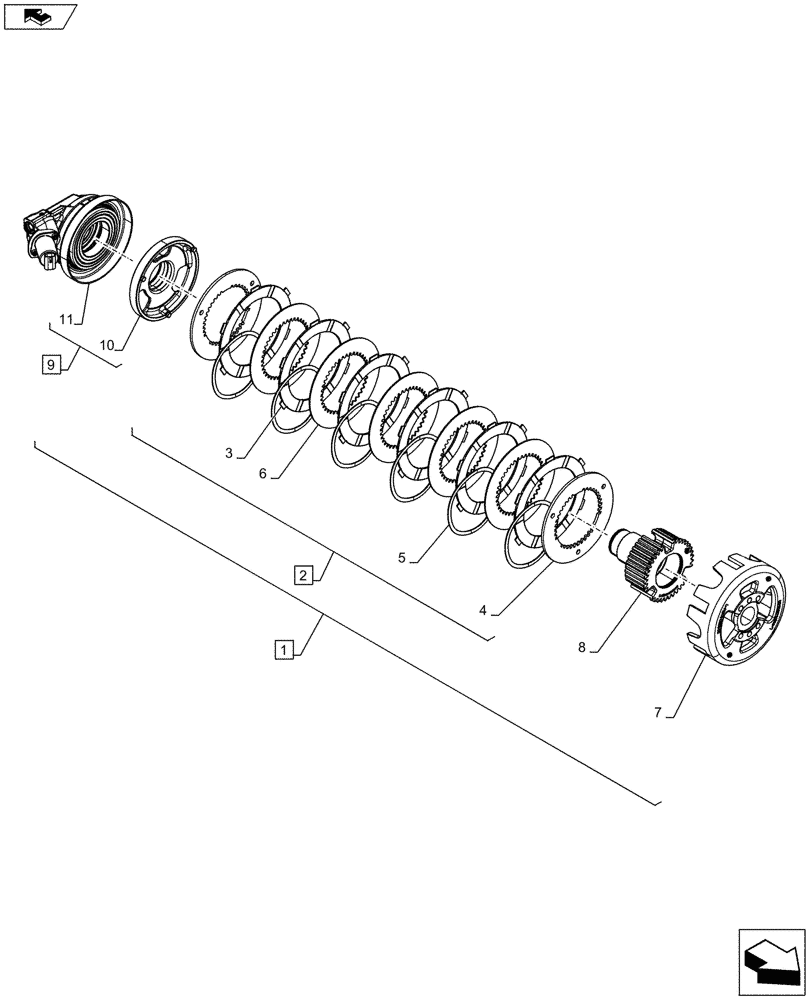

Схема запчастей Case IH FARMALL 105U - (31.146.AA[02]) - VAR - 744710 - FRONT PTO, CLUTCH - COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
5
8
10
9
4
home
3
home
6
7
1
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84153845

PTO CLUTCH

ASSY, Incl 2 - 11

1шт.

2

47733462

DISC

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

6шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Wave Washer, Incl in 2

6шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

5шт.

7

47874866

CLUTCH HOUSING

1шт.

8

47874867

HUB

1шт.

9

47733461

CLUTCH

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Release Ring, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Clutch Slave Cylinder, Incl in 9

1шт.
