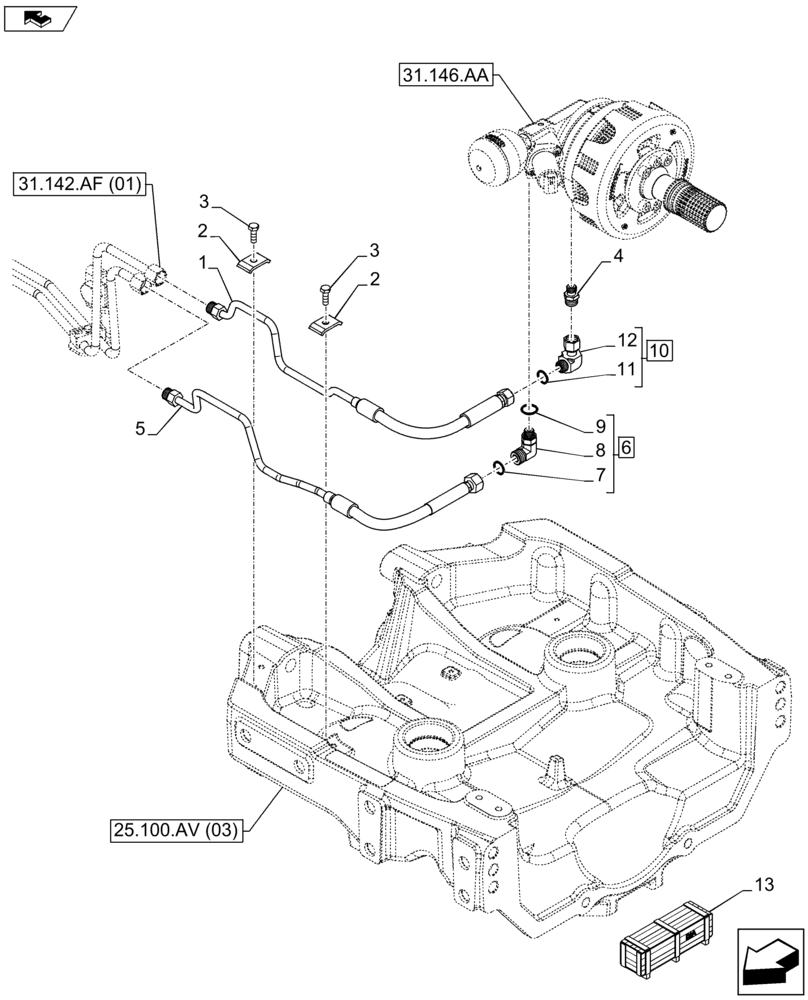

Запчасти Case IH FARMALL 105U (31.142.AF[02]) - VAR - 744710 - FRONT PTO ASSY, HYDRAULIC LINE (31) - IMPLEMENT POWER TAKE OFF

1

84413191

HYDRAULIC HOSE

Feed

1шт.

2

84519154

HOSE CLAMP

2шт.

3

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

4

47376245

HYD CONNECTOR,Straight, M14 x 1.5 ORB, 11/16"-16" UNF

1шт.

5

47589512

HYD TUBE

Return

1шт.

6

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

ASSY, Incl 7 - 9

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

10

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Inc 11, 12

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

13

718823080

DIA KIT, TRACTOR

Front PTO less FHPL (Multifunctional Axle Support), Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
