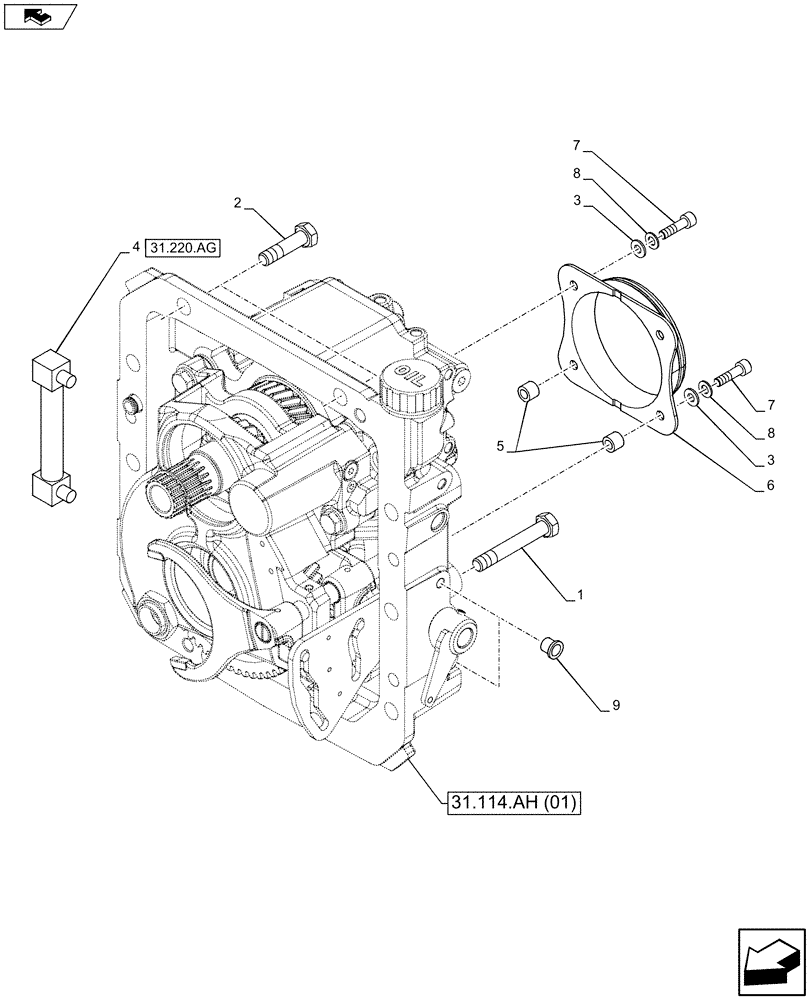

Запчасти Case IH FARMALL 105U (31.114.AH[06]) - VAR - 390433 - PTO, COVERS - NA (31) - IMPLEMENT POWER TAKE OFF

1

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

4шт.

2

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

3

10730324

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

4

87601120

INDICATOR

ASSY

1шт.

see also Figure 31.120.AG

1шт.

5

5166305

SPACER

2шт.

6

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

7

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

9

5196779

PLUG,Cap locking hole

2шт.
