(31.114.AB[03]) - VAR - 390433 - PTO, DRIVEN SHAFT, 2 SPEED, NA

Запчасти Case IH FARMALL 105U (31.114.AB[03]) - VAR - 390433 - PTO, DRIVEN SHAFT, 2 SPEED, NA (31) - IMPLEMENT POWER TAKE OFF

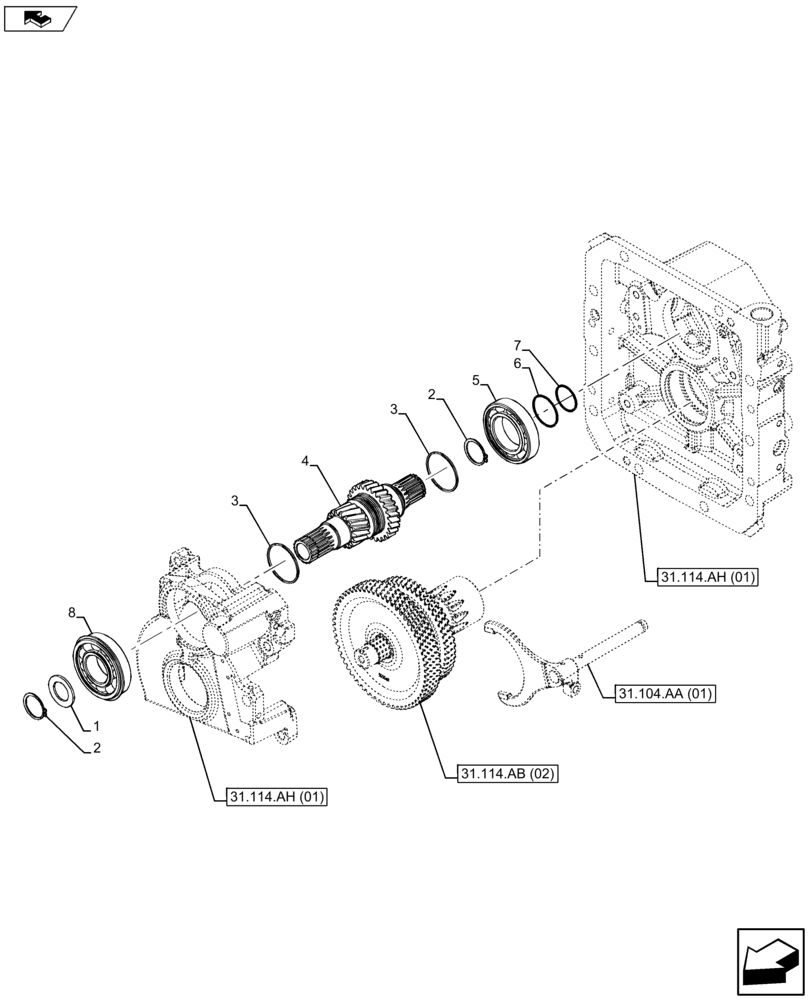

Схема запчастей Case IH FARMALL 105U - (31.114.AB[03]) - VAR - 390433 - PTO, DRIVEN SHAFT, 2 SPEED, NA (31) - IMPLEMENT POWER TAKE OFF
home
31.114.ah (01)
6
5
3
2
7
31.114.ah (01)
3
1
31.114.ab (02)
2
31.104.aa (01)
home
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

5175996

RETAINER

2шт.

4

84492914

PTO SHAFT

1шт.

5

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

6

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

7

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

8

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

1шт.

Выбрано товаров: 8
