Запчасти Case IH FARMALL 105U (27.120.AF[02]) - VAR - 330448 - SIDEFINAL DRIVES GEARING - APAC (27) - REAR AXLE SYSTEM

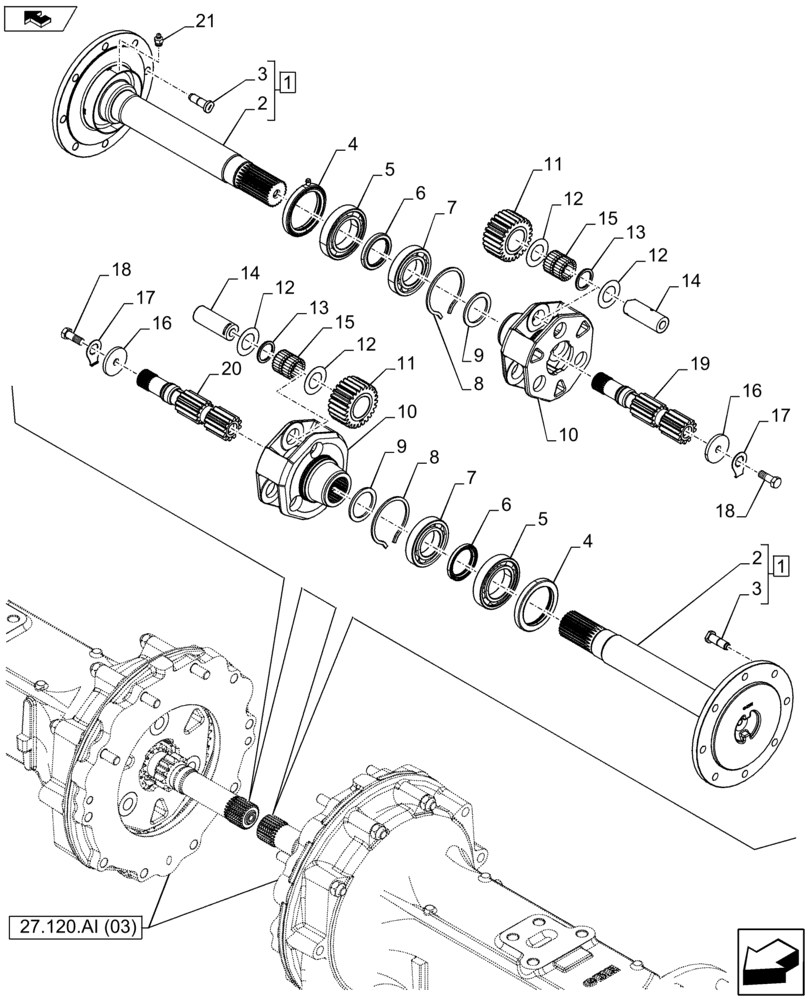

Схема запчастей Case IH FARMALL 105U - (27.120.AF[02]) - VAR - 330448 - SIDEFINAL DRIVES GEARING - APAC (27) - REAR AXLE SYSTEM
5
18
15
1
13
6
11
home
13
16
15
17
12
7
14
10
8
3
14
5
1
8
9
17
4
6
20
11
10
9
21
19
12
7
27.120.ai (03)
3
12
2
16
12
2
18
4

Артикул

Название

Примечание

Количество

1

84526270

DRIVE AXLE

ASSY, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Axle, Incl in 1

1шт.

3

44011089

WHEEL BOLT

8шт.

4

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

2шт.

5

84486356

BALL BEARING,130mm OD, Gr -40/+120

2шт.

6

5112290

OIL SEAL,68mm ID x 90mm OD x 10mm Thk

2шт.

7

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

2шт.

8

5157726

CIRCLIP

2шт.

9

4996966

SHIM,4.5mm Thk

Shim, 4.5mm Thick

2шт.

9

4996967

SHIM,4.6mm Thk

Shim, 4.6mm Thick

1шт.

9

4996968

SHIM,4.7mm Thk

Shim, 4.7mm Thick

1шт.

9

4996969

SHIM,4.8mm Thk

Shim, 4.8mm Thick

1шт.

9

4996970

SHIM,4.9mm Thk

Shim, 4.9mm Thick

1шт.

9

4996971

SHIM,5.0mm Thk

Shim, 5mm Thick

1шт.

9

4996972

SHIM,5.1mm Thk

Shim, 5.1mm Thick

1шт.

9

4996973

SHIM,5.2mm Thk

Shim, 5.2mm Thick

1шт.

9

4996974

SHIM,5.3mm Thk

Shim, 5.3mm Thick

1шт.

9

4996975

SHIM,5.4mm Thk

Shim, 5.4mm Thick

1шт.

9

4996976

SHIM,5.5mm Thk

Shim, 5.5mm Thick

1шт.

9

4996977

SHIM,5.6mm Thk

Shim, 5.6mm Thick

1шт.

9

4996978

SHIM,5.7mm Thk

Shim, 5.7mm Thick

1шт.

9

4996979

SHIM,5.8mm Thk

Shim, 5.8mm Thick

1шт.

10

5170104

PLANET CARRIER

2шт.

11

84475947

PLANETARY GEAR

6шт.

12

5157720

THRUST WASHER,40mm ID x 70mm OD x 1mm Thk

12шт.

13

5157718

SPACER,42.5mm ID x 54.05mm OD x 4mm L

6шт.

14

5170095

PIN,40.15mm OD x 108mm L

6шт.

15

5157719

NEEDLE BEARING,40.15mm ID x 54.15mm OD x 26mm W

6шт.

16

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

17

5157668

PLATE

2шт.

18

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

19

47567060

SUN GEAR

1шт.

20

84559623

SUN GEAR

1шт.

21

13407211

LUBE NIPPLE,M10 x 1

2шт.

Выбрано товаров: 34
