Запчасти Case IH FARMALL 105U (25.102.AC[01]) - VAR - 390399 - SUPPORT, DIFFERENTIAL CARRIER, 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

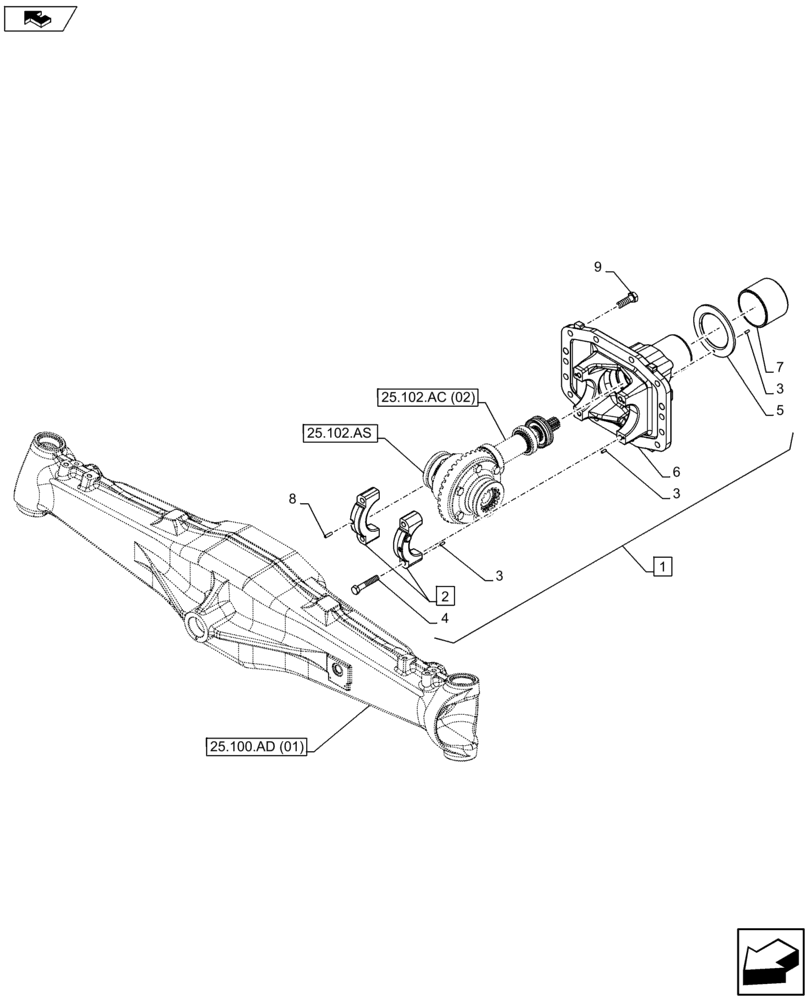

Схема запчастей Case IH FARMALL 105U - (25.102.AC[01]) - VAR - 390399 - SUPPORT, DIFFERENTIAL CARRIER, 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM
25.102.as
3
2
25.102.ac (02)
3
home
6
5
1
8
7
4
9
3
25.100.ad (01)
home

Артикул

Название

Примечание

Количество

1

84541020

SUPPORT

ASSY, Incl 2 - 7

1шт.

2

87383437

SUPPORT

ASSY, Incl 3

2шт.

3

4966244

PIN,5mm OD x 15mm L

2шт.

4

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

5

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

6

84541019

SUPPORT

1шт.

7

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

8

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

9

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

12шт.

Выбрано товаров: 9
