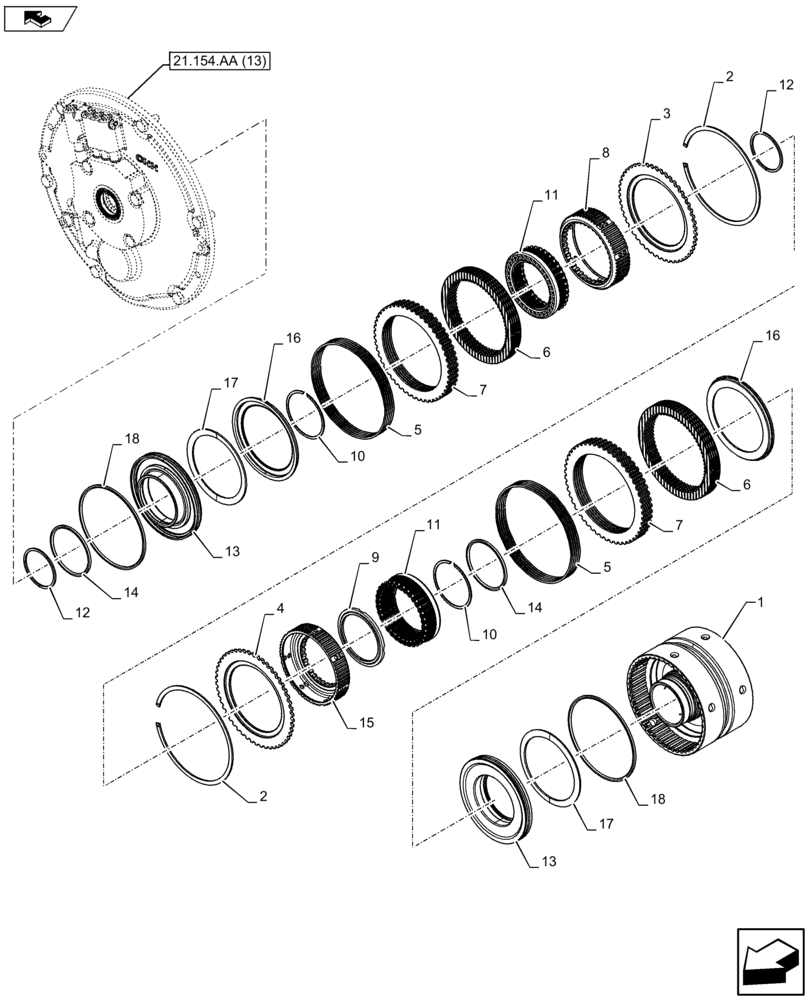

Запчасти Case IH FARMALL 105U (21.154.AA[14]) - VAR - 334115, 334117 - DRIVE TRAIN OF GEAR HI-LO (21) - TRANSMISSION

47791659R

REMAN-CLUTCH ASSY

Complete Clutch and Disc Assembly

1шт.

47791659C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

1

47136592

BELL HOUSING

1шт.

2

5162251

CIRCLIP,142.5mm ID

2шт.

3

47136597

NOTCHED DISK

1шт.

4

47136598

GEAR

1шт.

5

81864341

SPRING,148.35mm ID

10шт.

6

5199726

NOTCHED DISK,114.78mm ID x 143.25mm OD x 1.65mm Thk

10шт.

7

47136596

NOTCHED DISK,119.6mm ID x 152.6mm OD x 2.2mm Thk

10шт.

8

47136599

HUB

1шт.

9

47126729

SHOULDER

1шт.

10

81863329

CIRCLIP

2шт.

11

81864398

SPRING

2шт.

12

5197518

SEALING RING

4шт.

13

84589870

PISTON

2шт.

14

47136601

GASKET,70.55 - 70.70mm ID x 78mm OD x 3.20mm Thk

2шт.

15

47136602

HUB

1шт.

16

81871393

PISTON

2шт.

17

81872729

SPRING

2шт.

18

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

2шт.
