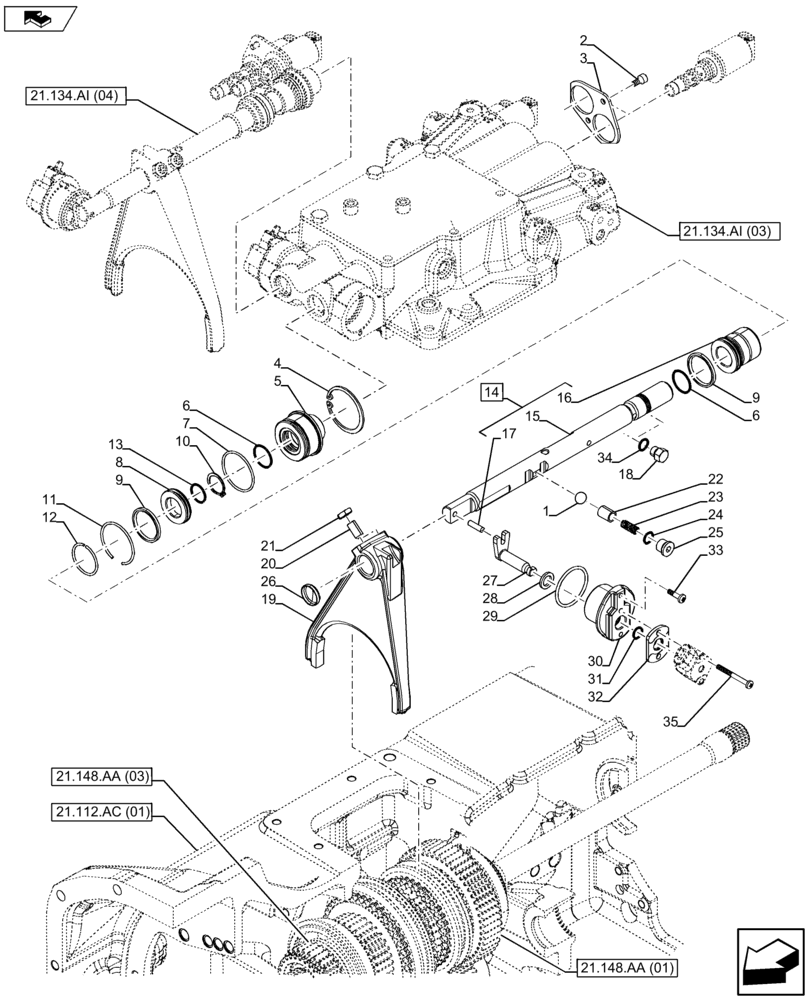

Запчасти Case IH FARMALL 105U (21.134.AI[05]) - VAR - 334114, 390430 - GEARSHIFT, CONTROLS (21) - TRANSMISSION

1

88210005

BALL,10mm OD

1шт.

2

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

3

82022595

BRACKET

1шт.

4

11060676

CIRCLIP,M55, Int

1шт.

5

5199735

PLUG

1шт.

6

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

7

13422176

CIRCLIP,M26, Int

1шт.

8

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

9

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

2шт.

10

11067276

SNAP RING,M24, Ext

1шт.

11

14459180

O-RING,45.69mm ID x 2.62"

1шт.

12

13398876

SNAP RING,M38, Int

1шт.

13

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

14

47127527

ROD

ASSY, Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Rod, Incl in 14

1шт.

16

47127530

PISTON

1шт.

17

82015193

PIN

1шт.

18

9672438

PLUG,7/16" - 20 ORB

2шт.

19

82852615

CLEVIS

1шт.

20

82895780

SET SCREW,less Hex Socket, M10 x 20mm

2шт.

21

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

2шт.

22

81864220

PLUNGER

1шт.

23

83407013

SPRING

1шт.

24

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

9625178

PLUG,9/16" - 18 ORB

1шт.

26

83417039

PLUG

1шт.

27

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

28

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

29

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

30

47135914

HOUSING

1шт.

31

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

32

5178541

PLATE

1шт.

33

13274421

SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 8.8

1шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

35

87673580

SCREW,Phil Pan Hd, M5 x 50mm, Cl 8.8, w/ Chem Lock

2шт.
