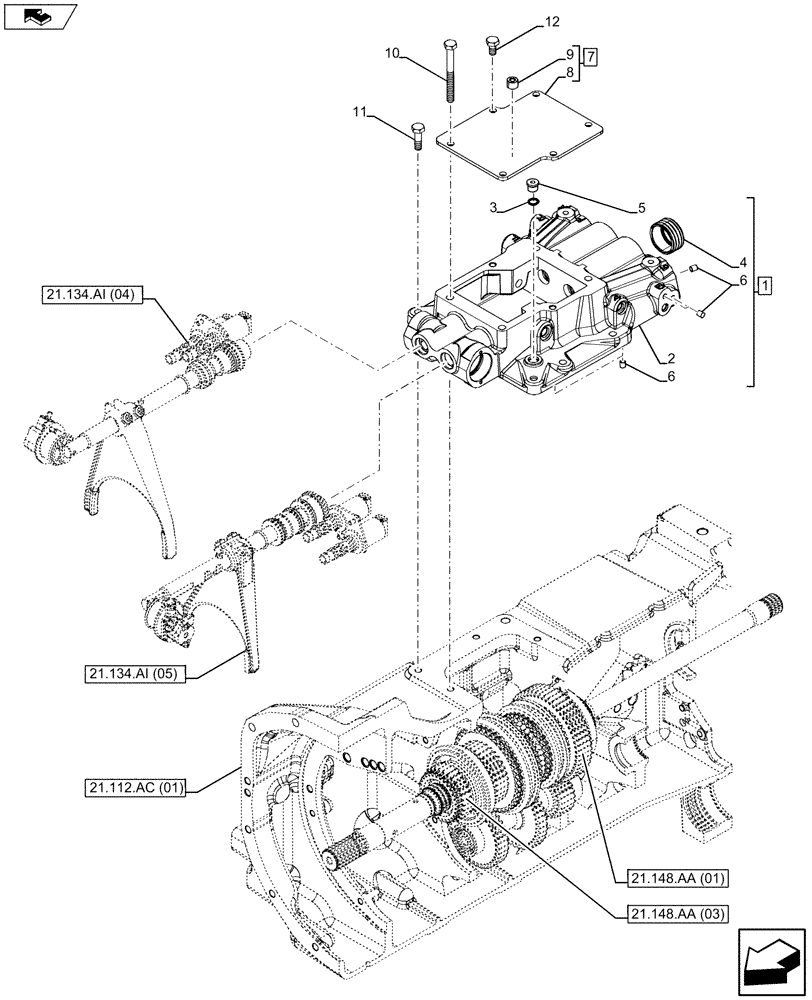

Запчасти Case IH FARMALL 105U (21.134.AI[03]) - VAR - 334114, 390430 - SHUTTLE CONTROL (21) - TRANSMISSION

1

47127526

COVER ASSY

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

82990914

BUSHING,42mm ID x 49.982 - 49.976mm OD x 24.50mm Thk

Alternative Part

2шт.

4

82990915

BUSHING,42mm ID x 49.990 - 49.983mm OD x 24.50mm Thk

2шт.

4

82990913

BUSHING,42mm ID x 49.975 - 49.967mm OD x 24.50mm Thk

Alternative Part

2шт.

4

82990917

BUSHING,42mm ID x 50.006 - 49.999mm OD x 24.50mm Thk

Alternative Part

2шт.

4

82990916

BUSHING,42mm ID x 49.998 - 49.991mm OD x 24.50mm Thk

Alternative Part

2шт.

5

9625178

PLUG,9/16" - 18 ORB

1шт.

6

14536490

PLUG,8.00mm Dia x 15.70mm L

12шт.

7

84488514

PLATE

ASSY, Incl 8, 9

1шт.

8

82852617

PLATE

1шт.

9

NSS

NOT SOLD SEPARAT

Spacer, Incl in 7

3шт.

10

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

4шт.

11

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
