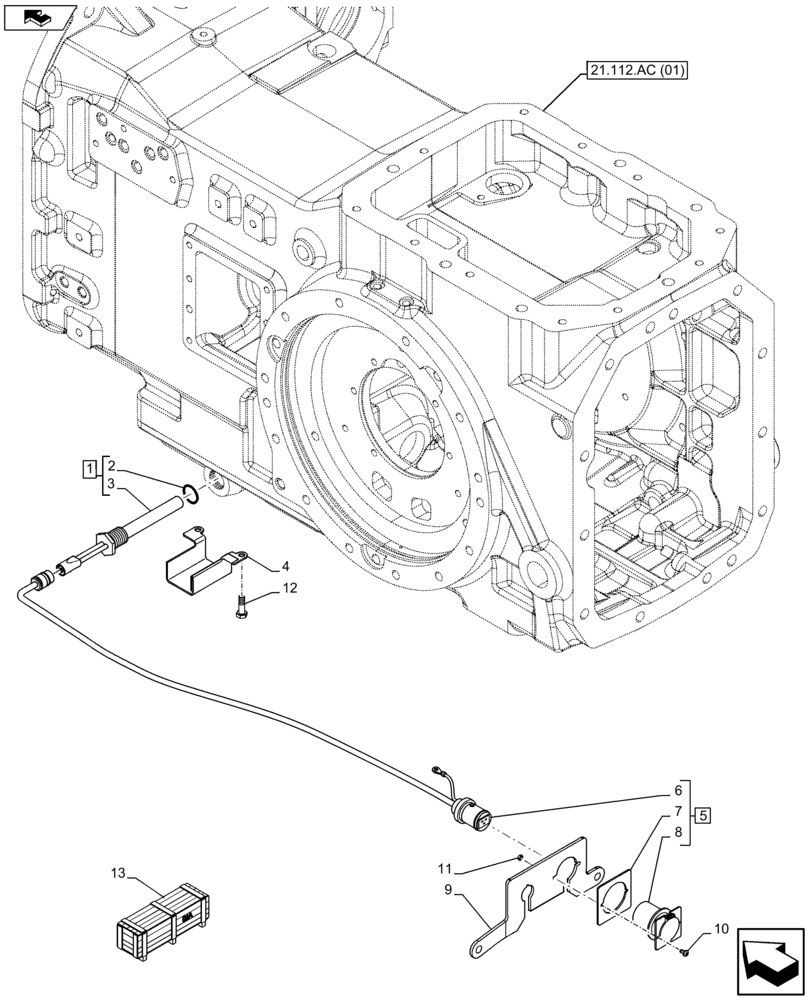

Запчасти Case IH FARMALL 105U (21.118.AJ[04]) - VAR - 744982 - ENGINE BLOCK HEATER 240V (21) - TRANSMISSION

1

82030789

HEATER,240V

Hydraulic Oil, ASSY, Incl 2, 3

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Heater, Incl in 1

1шт.

4

47527977

SHIELD

1шт.

5

47528327

WIRE HARNESS

220V, ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Cable, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Socket, Incl in 5

1шт.

9

47491104

BRACKET

1шт.

10

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

11

10794011

NUT,M4, Cl 8

2шт.

12

14420421

HEX SOC SCREW,M10 x 40mm, Cl 8.8, Full Thd

1шт.

13

719106060

DIA KIT, TRACTOR

Engine Block and Transmission Oil Heater (240V), Incl 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
