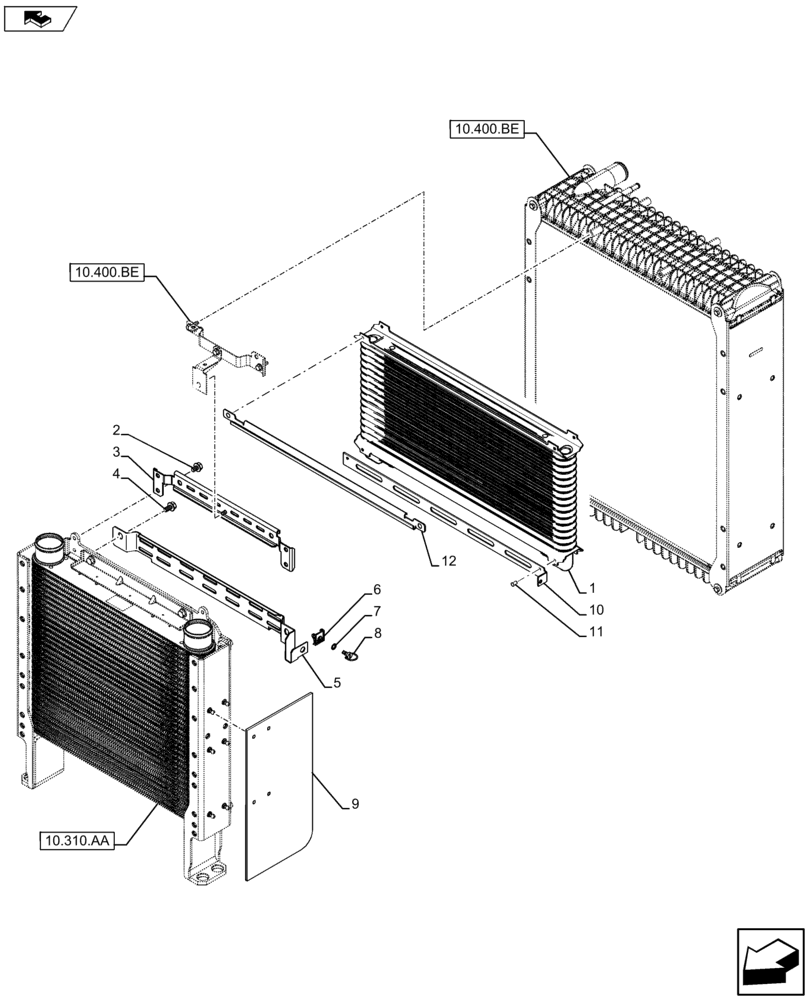

Запчасти Case IH FARMALL 105U (21.109.AK) - VAR - 336816, 390174 - OIL COOLER (21) - TRANSMISSION

1

87561789

OIL COOLER,300MM X 560MM

1шт.

2

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

3

84467142

SUPPORT

1шт.

4

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

5

84586046

SUPPORT

1шт.

6

82004582

CLIP,Square, 25mm

1шт.

7

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

8

87614935

STUD,6mm OD

1шт.

9

47398020

SEAL

2шт.

10

84352366

BRACKET

1шт.

11

14644490

RIVET,Pop, M4.8mm OD x 9.9mm L

4шт.

12

84352371

BRACKET

1шт.
