(10.254.AD[04A]) - VAR - 743544 - EXHAUST SYSTEM PIPE, HORIZONTAL - BEGIN YR 20-DEC-2013

Запчасти Case IH FARMALL 105C (10.254.AD[04A]) - VAR - 743544 - EXHAUST SYSTEM PIPE, HORIZONTAL - BEGIN YR 20-DEC-2013 (10) - ENGINE

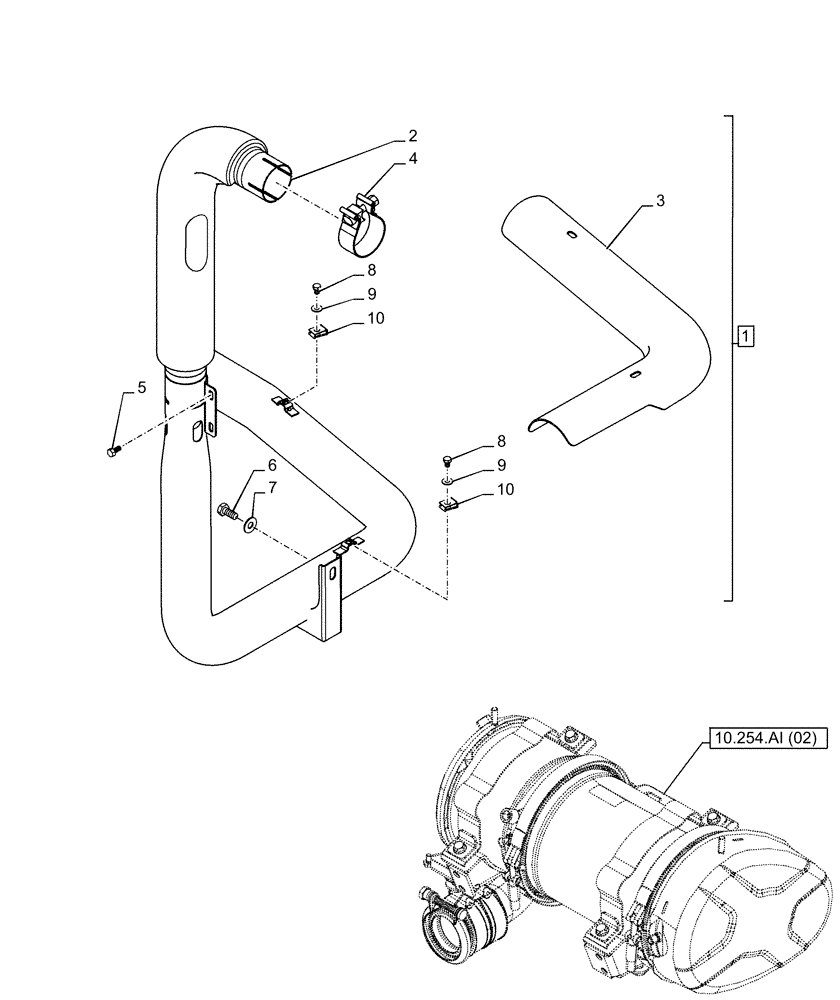

Схема запчастей Case IH FARMALL 105C - (10.254.AD[04A]) - VAR - 743544 - EXHAUST SYSTEM PIPE, HORIZONTAL - BEGIN YR 20-DEC-2013 (10) - ENGINE
7
8
9
3
10
8
4
10.254.ai (02)
6
10
9
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

, Incl 8 - 10, 2, 3

1шт.

2

47643155

EXHAUST SYSTEM PIPE

, Incl in 1

1шт.

3

47573072

SHIELD

, Incl in 1

1шт.

4

84499086

CLAMP,64.9mm

1шт.

5

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

8

10979424

BOLT,Hex, M6 x 10mm, Cl 8.8, Full Thd

, Incl in 1

2шт.

9

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

, Incl in 1

2шт.

10

14189071

SPRING NUT,M6

, Incl in 1

2шт.

Выбрано товаров: 10
