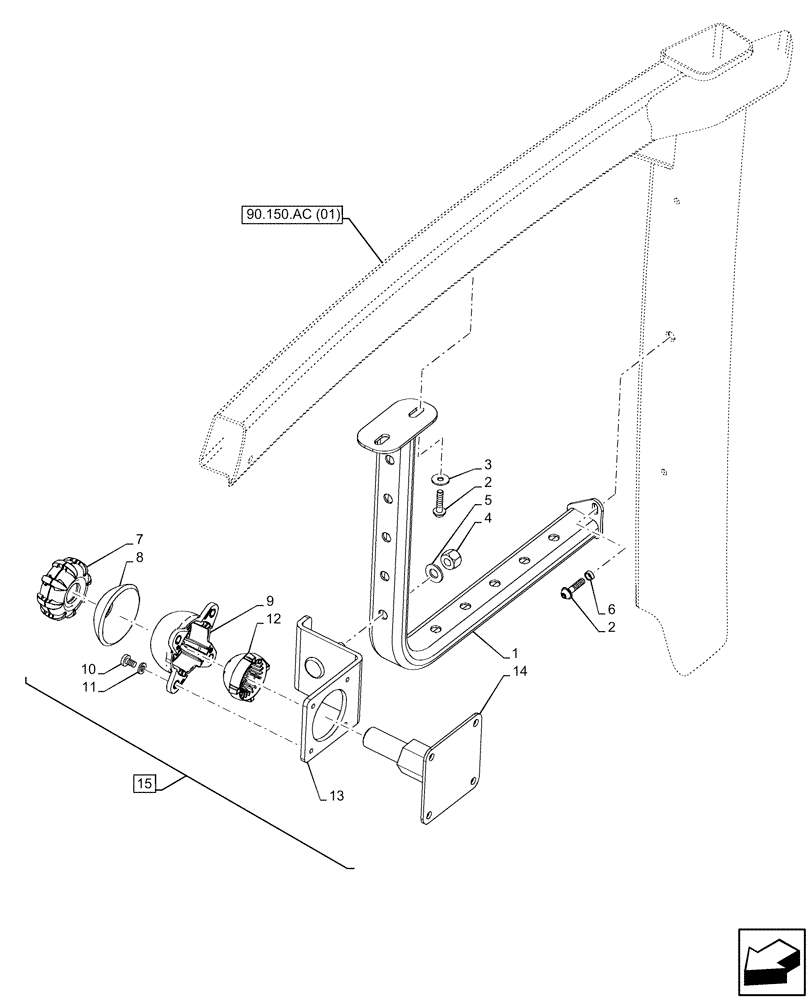

Запчасти Case IH FARMALL 105C (90.151.AT) - VAR - 334994 - SUPPORT, MONITOR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47469903

ARM

1шт.

2

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

3шт.

3

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

4

12574521

LOCK NUT,M10 x 1.25, Cl 10

1шт.

5

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

9.5mm OD x 7mm ID x 3.5mm H

1шт.

7

87316701

KNOB

1шт.

8

87316706

CUP,23mm ID x 68.6mm OD, Black

Upper

1шт.

9

87614602

BASE

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

12

87614603

CUP,Black

Lower

1шт.

13

87614600

BRACKET

1шт.

14

87565605

SUPPORT

1шт.

15

87614599

SUPPORT

ASSY, Incl 7 - 14

1шт.
