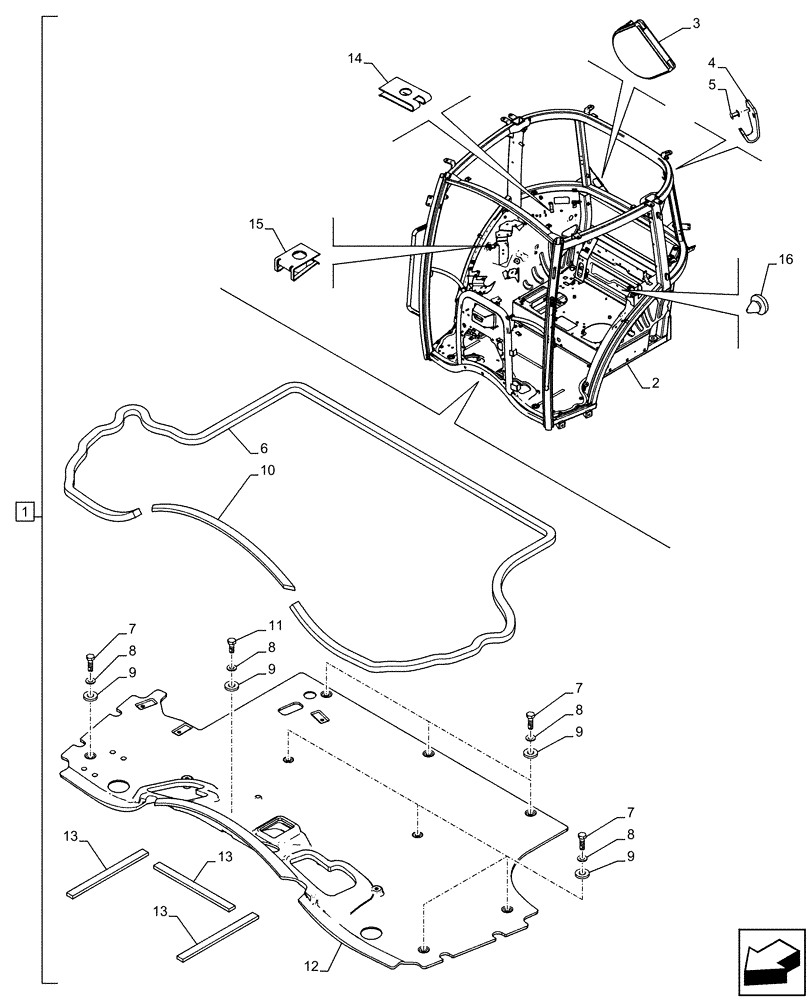

Запчасти Case IH FARMALL 105C (90.150.AC[01]) - VAR - 334180, 334183, 334211, 391606, 743496, 743573, 744588 - CAB FRAME - END YR 30-MAR-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47595803

FRAME

ASSY, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Cab Frame, Incl in 1

1шт.

3

84290317

PLUG

1шт.

4

84496617

COAT HOOK

1шт.

5

14642791

RIVET,Tr Hd, M4.8 x 12, Aluminum

2шт.

6

47547815

SEAL

1шт.

7

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

8шт.

8

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

9шт.

9

47546193

RUBBER WASHER,12mm ID x 25mm OD x 4mm Thk

9шт.

10

84555868

SEAL,510mm L

1шт.

11

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

1шт.

12

84316786

CARPET

1шт.

13

84555891

SEALING STRIP,20mm W x 250mm L x 8mm Thk

3шт.

14

14371774

SPRING NUT,M6, U, 12mm long

22шт.

15

14189071

SPRING NUT,M6

M6

1шт.

16

14624887

PLUG,5.5mm OD x 2.5mm

5.5mm x 2.5mm

2шт.
