Запчасти Case IH FARMALL 105C (90.124.AK[03]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), VALVE, BELLOWS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

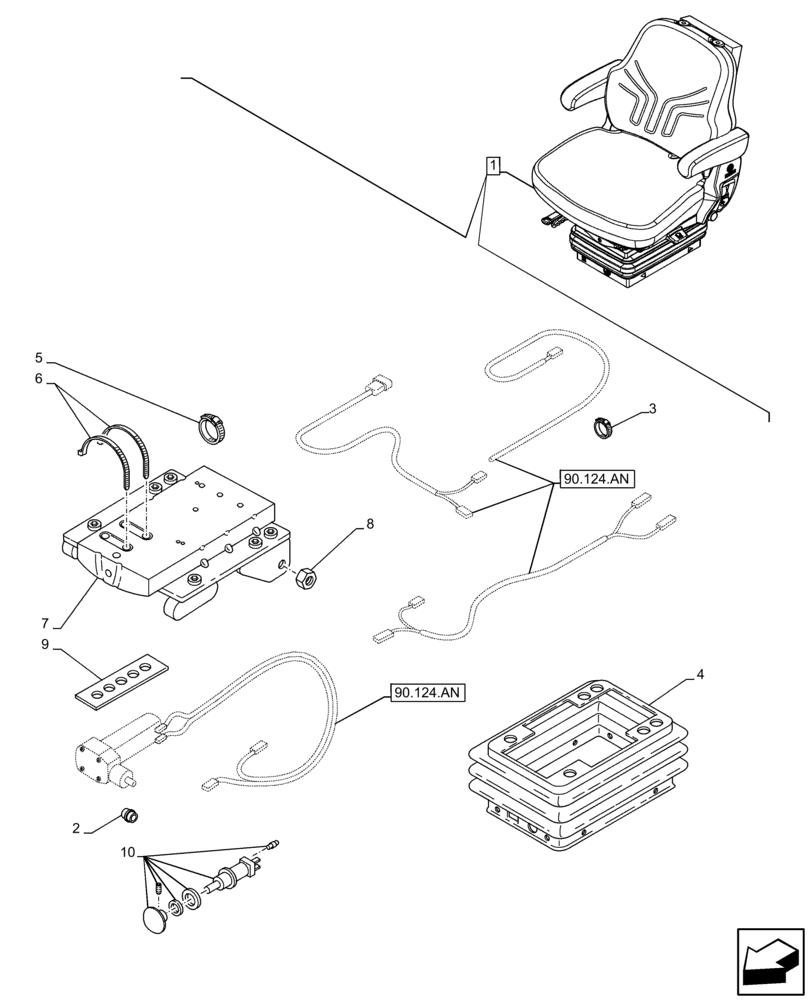

Схема запчастей Case IH FARMALL 105C - (90.124.AK[03]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), VALVE, BELLOWS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
2
8
90.124.an
6
5
4
7
3
1
90.124.an
9

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 10

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

87331945

FERRULE

2шт.

3

82035055

CABLE TIE,M4.7 x 204

1шт.

4

82035104

BELLOWS

1шт.

5

87567529

CABLE TIE,200mm L

200 x 3.6mm

1шт.

6

84171410

WIRE CLAMP

2шт.

7

9971516

MOUNTING PLATE

Upper

1шт.

8

82034883

NUT,CL 8.8

3шт.

9

84171558

PLATE

Seat Air Compressor

1шт.

10

87705191

KIT

Valve Seat Height Adjustment

1шт.

Выбрано товаров: 12
