Запчасти Case IH FARMALL 105C (90.124.AD[02]) - VAR - 332850 - DRIVER SEAT (15° SWIVEL), ARMREST, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

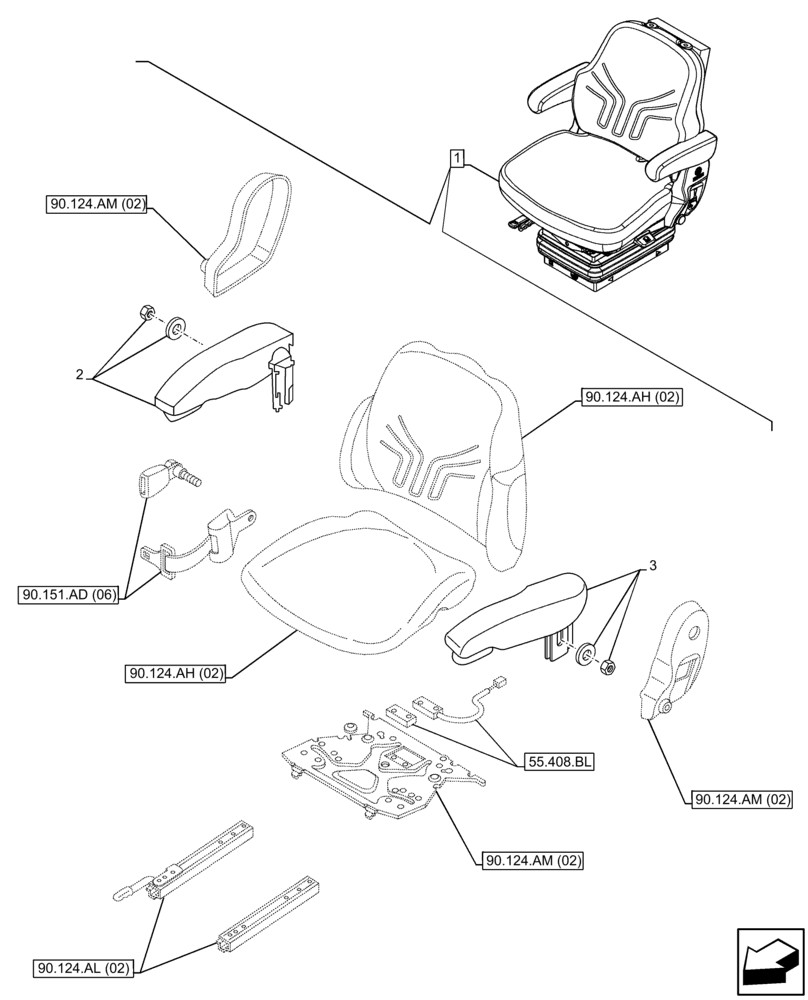

Схема запчастей Case IH FARMALL 105C - (90.124.AD[02]) - VAR - 332850 - DRIVER SEAT (15° SWIVEL), ARMREST, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (02)
90.151.ad (06)
90.124.ah (02)
2
90.124.am (02)
90.124.am (02)
55.408.bl
90.124.ah (02)
1
90.124.al (02)
3

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2, 3

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90. 151

1шт.

2

84487894

ARMREST

RH, with Fixing Parts

1шт.

3

84486613

ARMREST

LH, with Fixing Parts

1шт.

Выбрано товаров: 5
