Запчасти Case IH FARMALL 105C (90.120.AD[03]) - VAR - 390901 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

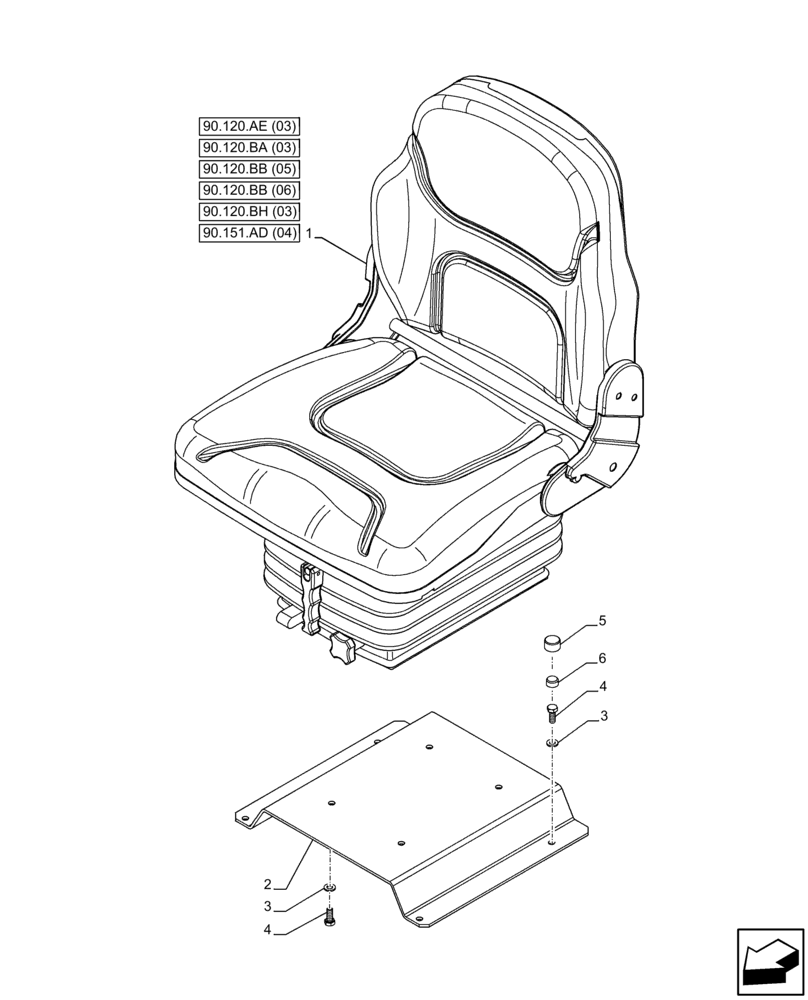

Схема запчастей Case IH FARMALL 105C - (90.120.AD[03]) - VAR - 390901 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
90.120.ba (03)
4
90.120.bh (03)
90.120.ae (03)
90.151.ad (04)
3
90.120.bb (05)
1
3
5
90.120.bb (06)
6
4

Артикул

Название

Примечание

Количество

1

84352963

SEAT

ASSY, Vinyl, Wheat

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Section, Subsection 90.120, 90.151

1шт.

2

84309301

SEAT SUPPORT

1шт.

3

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

5

5089481

CAP,17mm OD

17mm OD

4шт.

6

15811487

CAP,13mm x 8.5mm

13 x 8.5 Poly BLK

4шт.

Выбрано товаров: 8
