Запчасти Case IH FARMALL 105C (90.116.BA[01]) - VAR - 744673 - FRONT FENDER, SUPPORT, NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

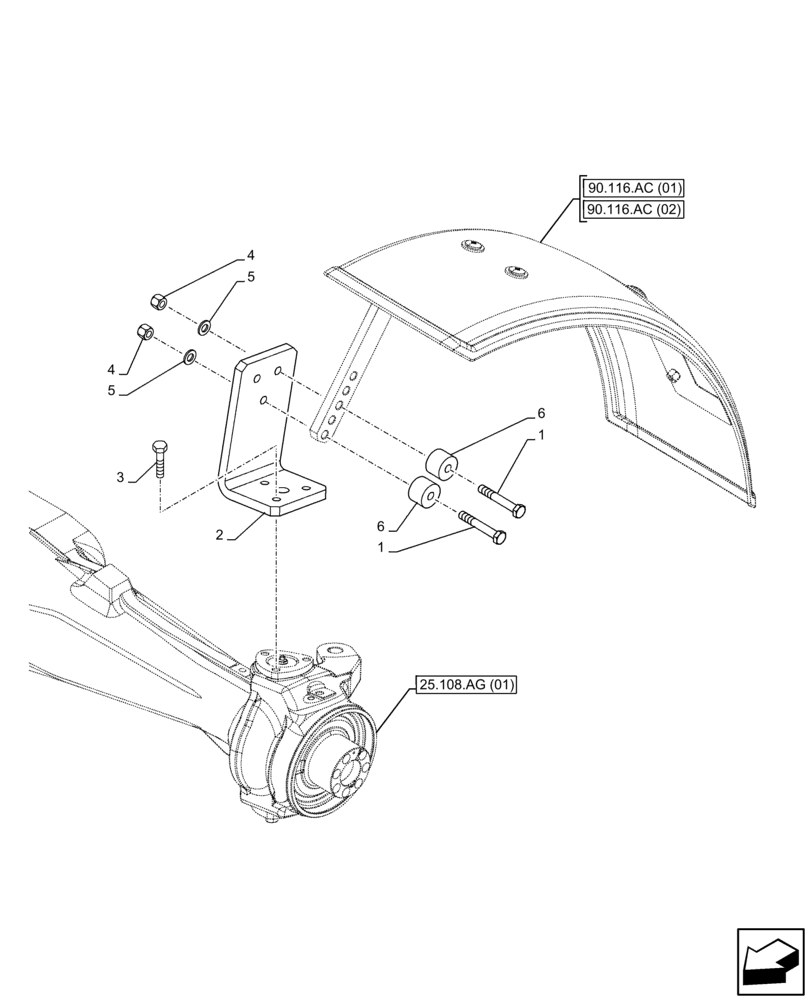

Схема запчастей Case IH FARMALL 105C - (90.116.BA[01]) - VAR - 744673 - FRONT FENDER, SUPPORT, NARROW, 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
3
2
6
1
4
5
90.116.ac (01)
25.108.ag (01)
90.116.ac (02)
6
1

Артикул

Название

Примечание

Количество

1

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

2

5185292

SUPPORT

1шт.

3

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

3шт.

4

16105014

LOCK NUT,M12 x 1.25

2шт.

5

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

5166193

SPACER,13mm ID x 40mm OD x 28mm L

13mm x 40mm x 28mm

2шт.

Выбрано товаров: 6
