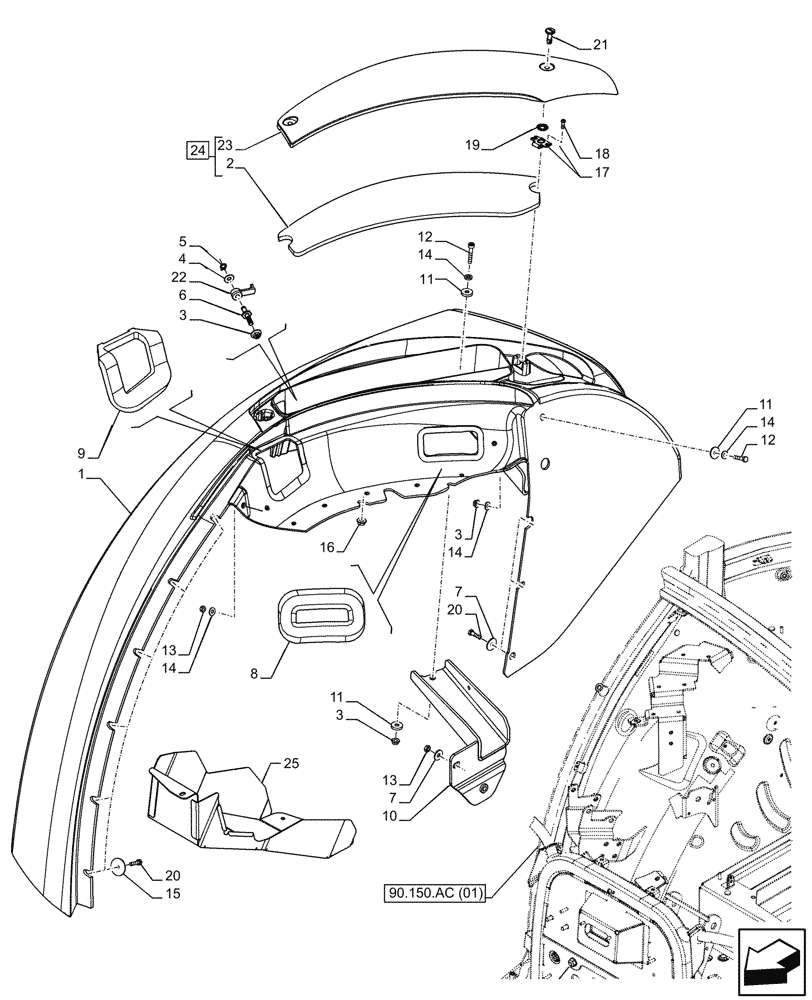

Запчасти Case IH FARMALL 105C (90.116.AC[09]) - VAR - 340562, 340563, 340564, 340565 - REAR FENDER, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84303404

REAR FENDER

LH, Red

1шт.

1

84303397

REAR FENDER

RH, Red

1шт.

2

84221543

SEAL,468.5mm L

LH

1шт.

2

84346360

SEAL,468.5mm L

RH

1шт.

3

13046111

LOCK NUT,Flg Lock, M6

M6

8шт.

4

12643721

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

4шт.

5

11065476

SNAP RING,M6, Ext

4шт.

6

84541332

PIN,6mm OD x 37mm L

M6

4шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

8

84234566

SEAL

2шт.

9

84234567

SEAL,156mm L

2шт.

10

84315605

BRACKET

LH

1шт.

10

84315616

BRACKET

RH

1шт.

11

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

6шт.

12

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

13

15896214

NUT,M6, Cl 8

4шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

8шт.

15

47567924

WASHER,6.15mm ID x 34mm OD x 1.5mm Thk

12шт.

16

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

4шт.

17

84351743

CLIP,9mm ID

9mm ID

4шт.

18

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

M3 x 12

8шт.

19

84290344

THRUST WASHER,13mm OD x 1mm Thk

2шт.

20

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

18шт.

21

84290347

LOCK PIN,6mm OD x 18mm L

4шт.

22

84341983

LOCK KEY

4шт.

23

84337204

TOP COVER

LH, Red

1шт.

23

84337208

TOP COVER

RH, Red

1шт.

24

84513723

COVER

LH, ASSY, Red, Incl 2, 23

1шт.

24

84513724

COVER

RH, ASSY, Red, Incl 2, 23

1шт.

25

47632366

BRACKET

LH

1шт.

25

47632380

BRACKET

RH

1шт.
