Запчасти Case IH FARMALL 105C (90.116.AC[05]) - VAR - 744674 - DYNAMIC FRONT FENDER (400MM), LARGE, HIGH TYRES (24’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

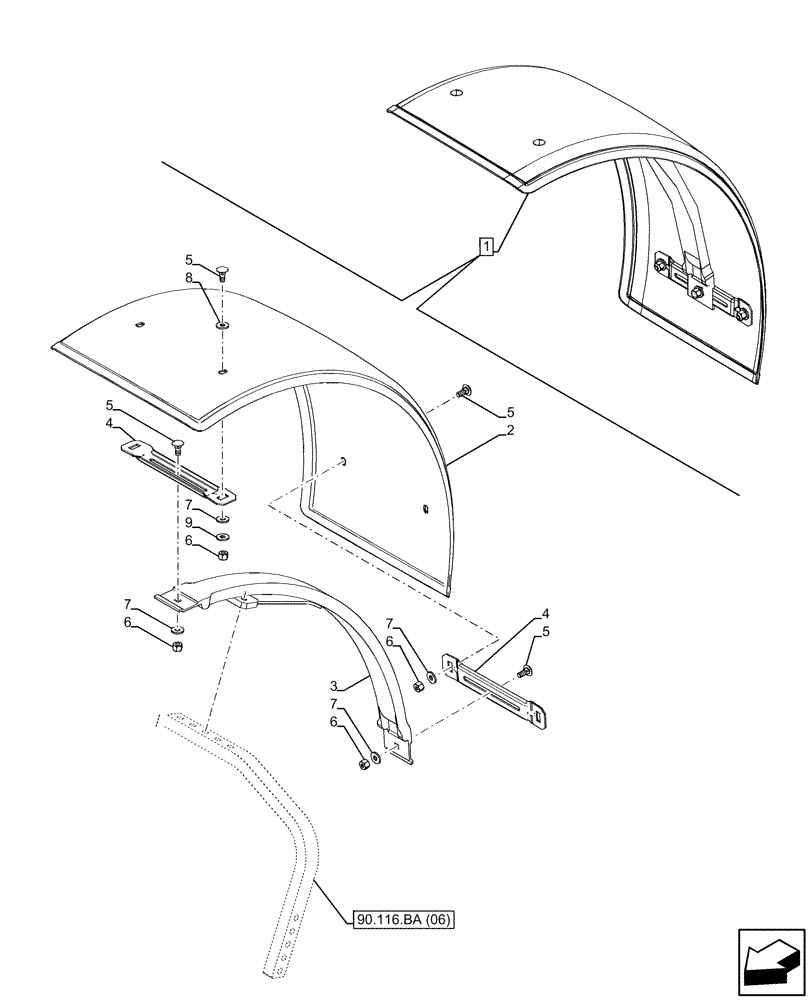

Схема запчастей Case IH FARMALL 105C - (90.116.AC[05]) - VAR - 744674 - DYNAMIC FRONT FENDER (400MM), LARGE, HIGH TYRES (24’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
7
5
3
7
5
2
6
90.116.ba (06)
4
8
5
4
1
7
7
5
6
6
6

Артикул

Название

Примечание

Количество

1

84593556

FENDER

ASSY, Incl 2 - 7

2шт.

2

84599587

FRONT FENDER,410 mm L

1шт.

3

87616362

BRACKET

1шт.

4

84599586

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 31mm, Hex

6шт.

6

190003888452

LOCK NUT,M10, Class 8

6шт.

7

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

8

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

4шт.

9

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

4шт.

Выбрано товаров: 9
