Запчасти Case IH FARMALL 105C (90.110.AP[02]) - VAR - 334187, 334190, 392315, 743565, 743566, 743594 - PLATFORM, SPARK ARRESTER, HANDLE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

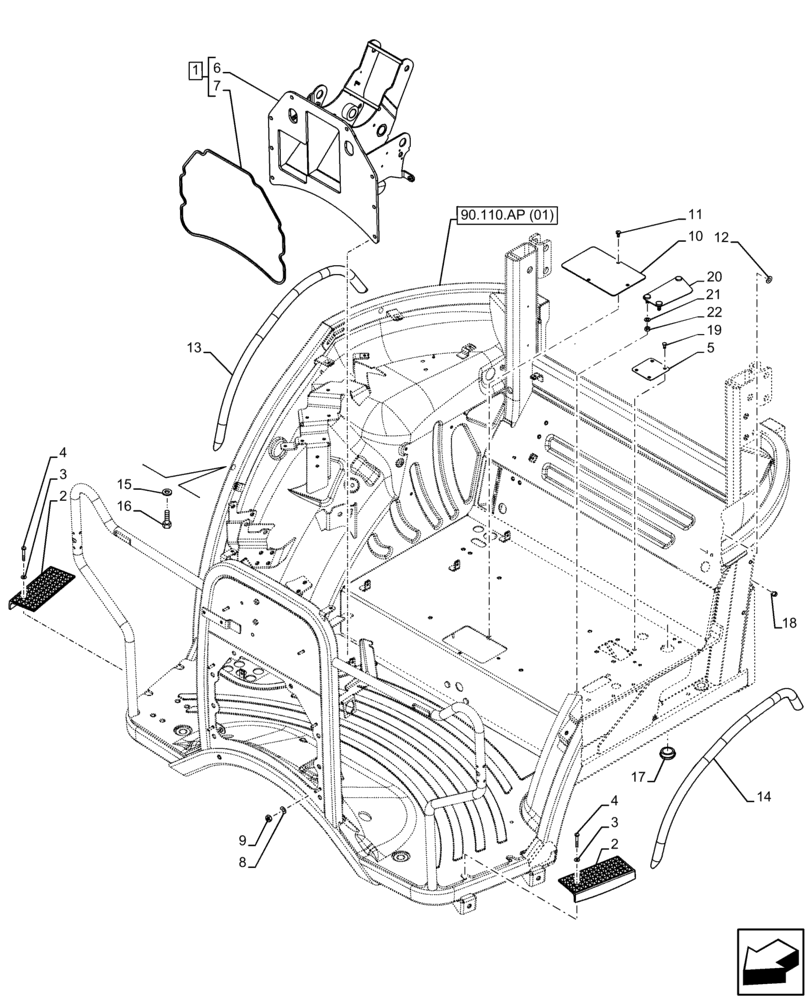

Схема запчастей Case IH FARMALL 105C - (90.110.AP[02]) - VAR - 334187, 334190, 392315, 743565, 743566, 743594 - PLATFORM, SPARK ARRESTER, HANDLE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
9
14
11
4
21
22
4
2
13
20
90.110.ap (01)
18
7
12
17
16
19
2
5
6
8
15
10
3
3

Артикул

Название

Примечание

Количество

1

47580766

SPARK ARRESTER

ASSY, Incl 5 - 7

1шт.

2

84360804

RETAINER

2шт.

Valid also for Var. 335743, 335744, 335792

1шт.

3

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

Valid also for Var. 335743, 335744, 335792

1шт.

4

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

Valid also for Var. 335743, 335744, 335792

1шт.

5

84384548

PLUG

1шт.

6

NSS

NOT SOLD SEPARAT

Pedal Support, Incl in 1

1шт.

7

84265757

RUBBER SEAL,3mm Thk

1шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

9

12164721

NUT,M10 x 1.25, Cl 10

8шт.

10

84403917

PLATE

1шт.

11

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

3шт.

12

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

1шт.

13

84488411

HANDLE

RH

1шт.

14

84488410

HANDLE

LH

1шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

4шт.

16

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

4шт.

17

5175968

PLUG,Cap locking hole

2шт.

18

82003283

PLUG,10.5mm OD

4шт.

19

16043211

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

4шт.

20

84490052

COVER PLATE

1шт.

21

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

22

16100814

NUT,M8, Cl 8, DAC

3шт.

Выбрано товаров: 25
