Запчасти Case IH FARMALL 105C (90.100.AC[01A]) - HOOD, SIDE PANEL - BEGIN YR 11-FEB-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

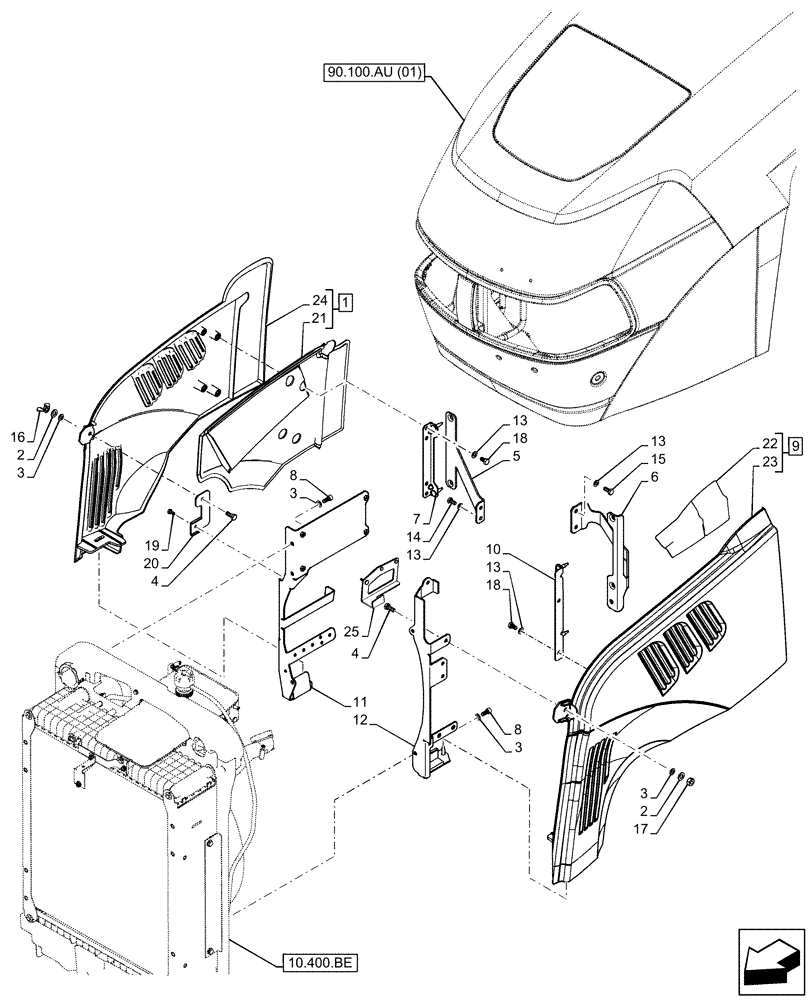

Схема запчастей Case IH FARMALL 105C - (90.100.AC[01A]) - HOOD, SIDE PANEL - BEGIN YR 11-FEB-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au (01)
19
12
22
20
25
13
10
21
13
17
5
3
13
15
14
23
16
3
2
1
9
8
4
11
4
3
18
3
6
2
13
18
7
24
8
10.400.be
10.400.be
90.100.au (01)

Артикул

Название

Примечание

Количество

1

47394578

SIDE PANEL

ASSY, RH, Incl 21, 24

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

12шт.

4

84599617

BUSHING,7.8mm ID x 9.8mm OD x 14mm L

2шт.

5

84546520

BRACKET

RH

1шт.

6

47617509

BRACKET

LH

1шт.

7

84497480

BRACKET

1шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

47588491

SIDE PANEL

ASSY, LH, Incl 22, 23

1шт.

10

47609955

BRACKET

1шт.

11

47523036

BRACKET

RH

1шт.

12

47564726

BRACKET

LH

1шт.

13

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

9.2 x 16 x 1.5

13шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

10102001

WING NUT,Wing Nut, M8 x 1.25

1шт.

17

16100814

NUT,M8, Cl 8, DAC

1шт.

18

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

20

84535050

BRACKET

RH

1шт.

21

47705349

SHIELD

RH

1шт.

22

84471997

HEAT SHIELD

LH

1шт.

23

NSS

NOT SOLD SEPARAT

Panel, Incl in 9

1шт.

24

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

25

47507857

OPERATOR MANUAL NL

1шт.

Выбрано товаров: 25
