Запчасти Case IH FARMALL 105C (82.300.AY[01]) - VAR - 333489, 335489, 336730, 336731, 336732, 336733, 334489, 339489, 336734, 336735, 336736, 336739 - LOADER BUCKET, PIN (82) - FRONT LOADER & BUCKET

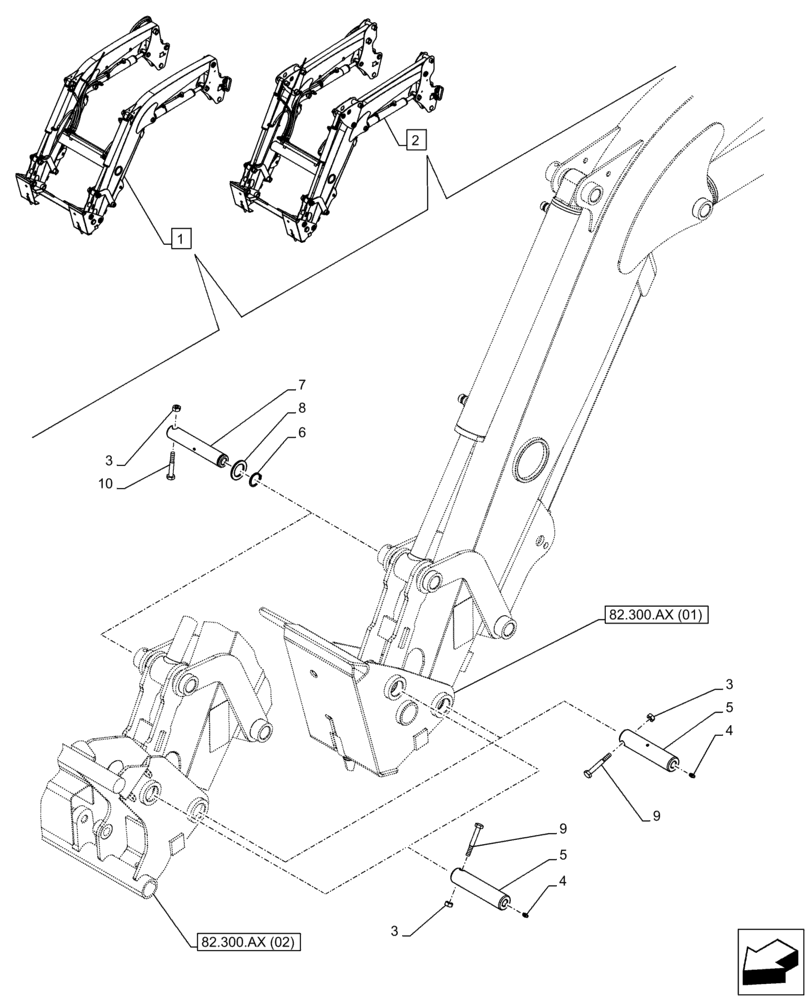

Схема запчастей Case IH FARMALL 105C - (82.300.AY[01]) - VAR - 333489, 335489, 336730, 336731, 336732, 336733, 334489, 339489, 336734, 336735, 336736, 336739 - LOADER BUCKET, PIN (82) - FRONT LOADER & BUCKET
9
3
4
7
5
82.300.ax (02)
3
9
8
10
2
82.300.ax (01)
4
3
5
6
1

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - SSL Tool Attach., Var. 333489, 335489, 336730

1шт.

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47556494

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - EU Tool Attach., Var. 336732

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

84321725

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 334489, 339489, 336734

1шт.

2

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

2

47556496

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336736

1шт.

2

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

6шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

4шт.

5

84393572

PIN,38mm OD x 167.5mm L

4шт.

6

84406125

LOCKING RING

2шт.

7

84393575

PIN

2шт.

8

84406124

SPACER

2шт.

9

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

4шт.

10

1185622

BOLT,Hex, M10 x 65, 10.9

2шт.

Выбрано товаров: 24
