(82.100.AI) - LOADER ARM, SUPPORTING ARM

Запчасти Case IH FARMALL 105C (82.100.AI) - LOADER ARM, SUPPORTING ARM (82) - FRONT LOADER & BUCKET

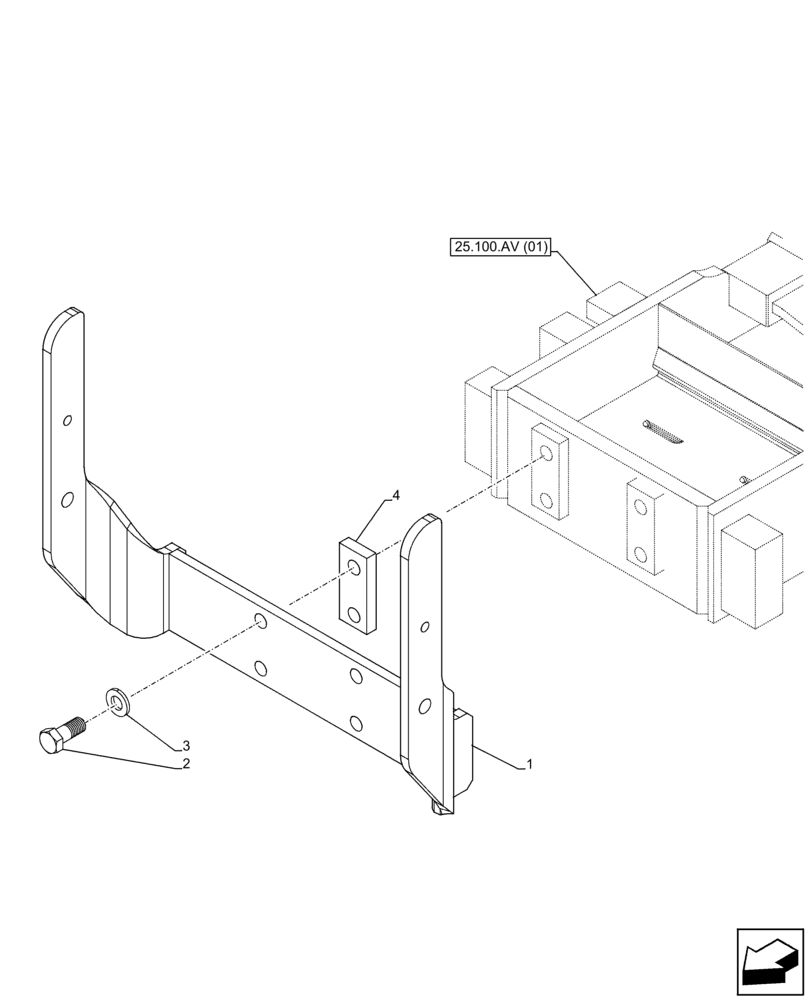

Схема запчастей Case IH FARMALL 105C - (82.100.AI) - LOADER ARM, SUPPORTING ARM (82) - FRONT LOADER & BUCKET
2
4
3
25.100.av (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84319164

BRACKET

1шт.

2

11124734

BOLT,Hex, M20 x 50, 10.9, Full Thd

4шт.

2

11126134

BOLT,Hex, M20 x 120mm, Cl 10.9

M20 x 120 mm

4шт.

With Front Loader (Less Diverter), Var. 336734, 336740, 336744, 336732, 336736, 336742

1шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

4

84384968

PLATE

2шт.

With Front Loader (Less Diverter), Var. 336734, 336740, 336744, 336732, 336736, 336742

1шт.
