(82.100.AF[03]) - VAR - 336731, 336733 - LOADER ARM, ARM/LIFTING DEVICE

Запчасти Case IH FARMALL 105C (82.100.AF[03]) - VAR - 336731, 336733 - LOADER ARM, ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET

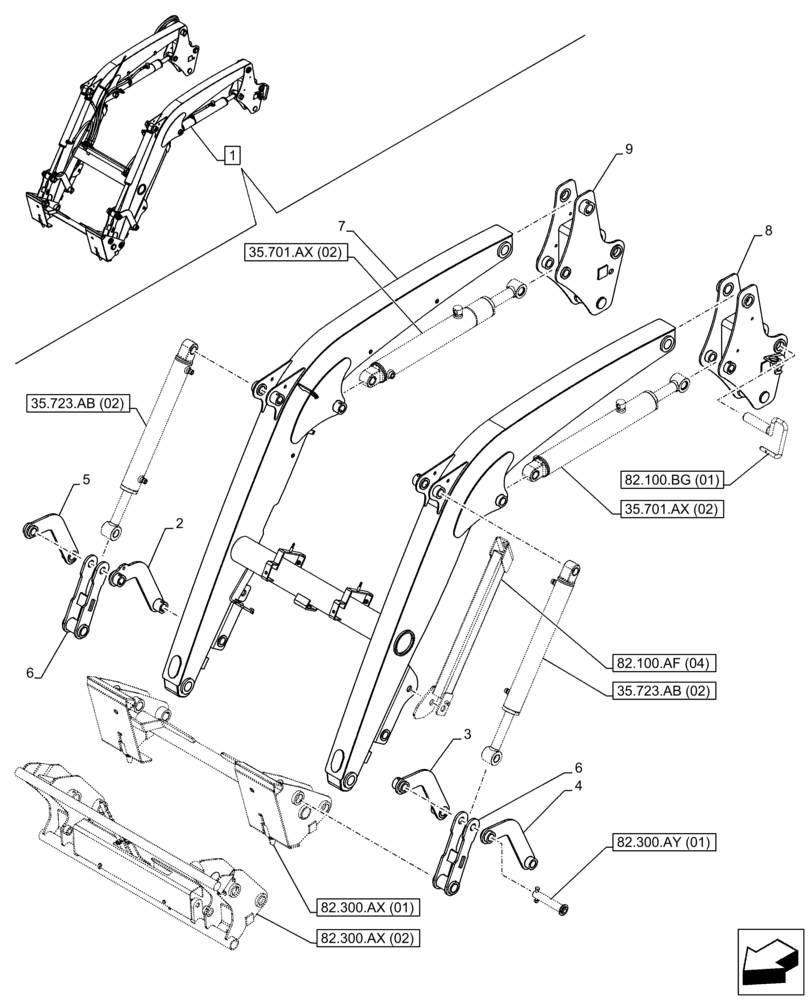

Схема запчастей Case IH FARMALL 105C - (82.100.AF[03]) - VAR - 336731, 336733 - LOADER ARM, ARM/LIFTING DEVICE (82) - FRONT LOADER & BUCKET
82.100.af (04)
35.723.ab (02)
35.701.ax (02)
35.701.ax (02)
6
35.723.ab (02)
2
82.300.ax (02)
9
3
6
8
82.300.ax (01)
5
7
4
1
82.100.bg (01)
82.300.ay (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

84393710

LEVER

RH, Inner

1шт.

3

84393715

LEVER

LH, Inner

1шт.

4

84393699

LEVER

LH, Outer

1шт.

5

84393693

LEVER

RH, Outer

1шт.

6

84393751

ROD

2шт.

7

47608238

LOADER ARM

1шт.

8

84393652

SUPPORT

LH

1шт.

9

84393650

SUPPORT

RH

1шт.

Выбрано товаров: 0
