(55.523.AH[02]) - VAR - 390832 - HYDRAULIC LIFT, LIGHT, PANEL, HI-LO, CAB

Запчасти Case IH FARMALL 105C (55.523.AH[02]) - VAR - 390832 - HYDRAULIC LIFT, LIGHT, PANEL, HI-LO, CAB (55) - ELECTRICAL SYSTEMS

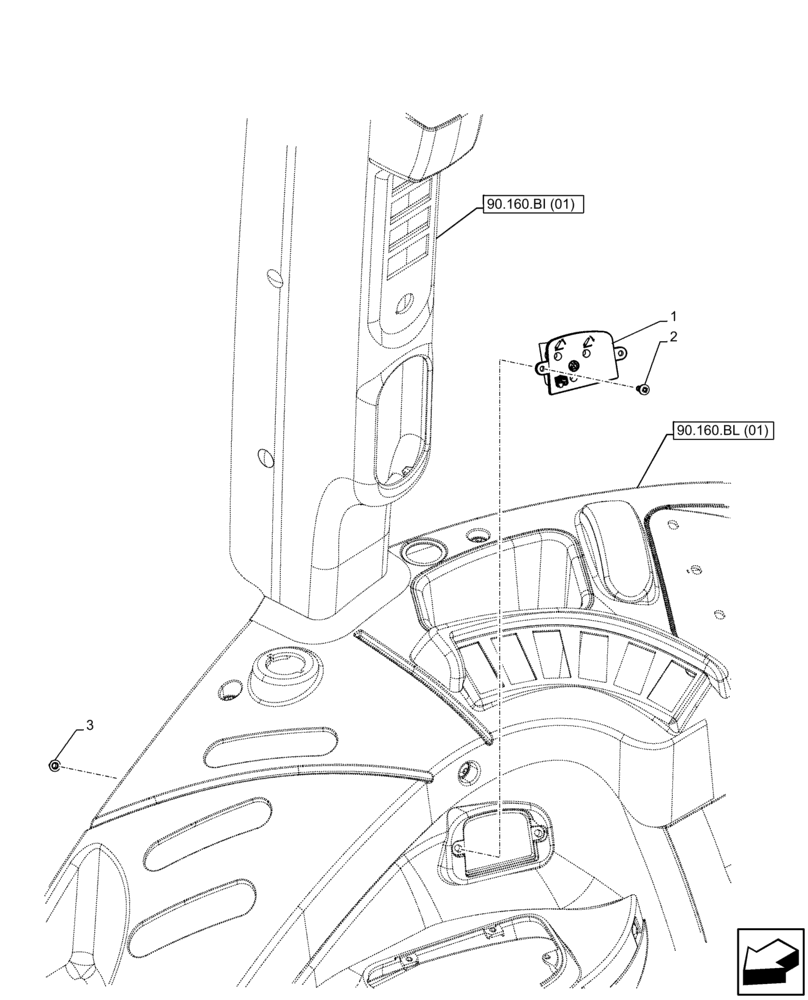

Схема запчастей Case IH FARMALL 105C - (55.523.AH[02]) - VAR - 390832 - HYDRAULIC LIFT, LIGHT, PANEL, HI-LO, CAB (55) - ELECTRICAL SYSTEMS
3
2
90.160.bl (01)
90.160.bi (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87599614

PANEL

LED for EDC less Slip Control

1шт.

2

13272024

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 8.8, Full Thd

2шт.

3

14084011

FLANGE NUT,M4 x .7, Flg

2шт.

Выбрано товаров: 3
