(55.100.DO[05]) - VAR - 336754, 391754 - FUSE, RELAY, HARNESS, ROOF-MOUNTED, CAB

Запчасти Case IH FARMALL 105C (55.100.DO[05]) - VAR - 336754, 391754 - FUSE, RELAY, HARNESS, ROOF-MOUNTED, CAB (55) - ELECTRICAL SYSTEMS

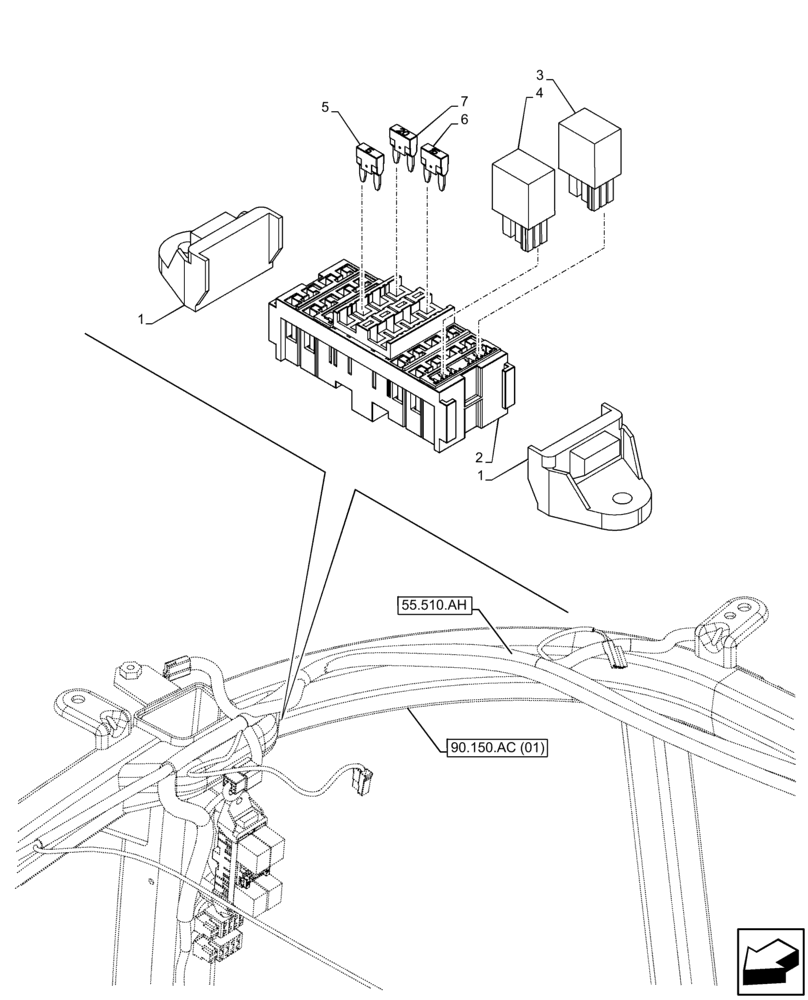

Схема запчастей Case IH FARMALL 105C - (55.100.DO[05]) - VAR - 336754, 391754 - FUSE, RELAY, HARNESS, ROOF-MOUNTED, CAB (55) - ELECTRICAL SYSTEMS
90.150.ac (01)
2
1
1
3
6
55.510.ah
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87588035

BRACKET

2шт.

2

84529039

MODULE

1шт.

3

84157157

RELAY,12V, 20A, Micro

12V/20A

3шт.

4

87604032

RELAY,12V, 30A, Micro

1шт.

5

84153830

FUSE,5A, Mini, Beige

5A

3шт.

6

84127703

FUSE,15A, Mini, Blue

15A

3шт.

7

84137704

BUCKET

20A

1шт.

Выбрано товаров: 7
