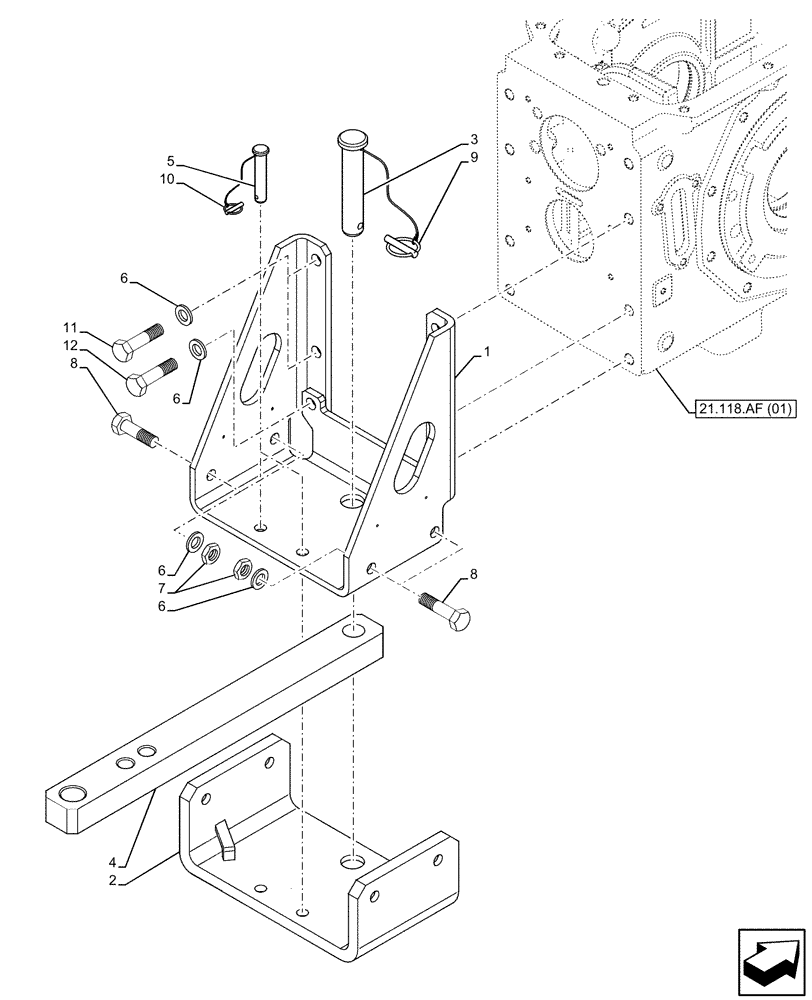

Запчасти Case IH FARMALL 105C (37.100.AA) - VAR - 392905 - DRAWBAR SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84482257

SUPPORT

1шт.

2

84482261

SUPPORT

1шт.

3

84340347

PIN,32mm OD x 93mm L

93mm, 32mm

1шт.

4

84482264

DRAWBAR,598mm L x 60mm W x 40mm Thk

598mm

1шт.

5

84340348

PIN,16mm OD x 93mm L

93mm, 16mm

2шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

10шт.

7

12164124

NUT,M16 x 1.5, Cl 8

4шт.

8

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

M16 x 1.5 x 60 8.8 DAC

4шт.

9

47133246

LOCK PIN,7.5mm OD x 42mm L

1шт.

10

44903774

LOCK PIN,4.8mm OD x 40mm L

2шт.

11

11391534

BOLT,Hex, M16 x 1.5 x 45, 10.9, Full Thd

1шт.

12

15981034

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

1шт.
