Запчасти Case IH FARMALL 105C (33.110.AP) - VAR - 743551 - PARKING BRAKE, CONTROL LEVER (33) - BRAKES & CONTROLS

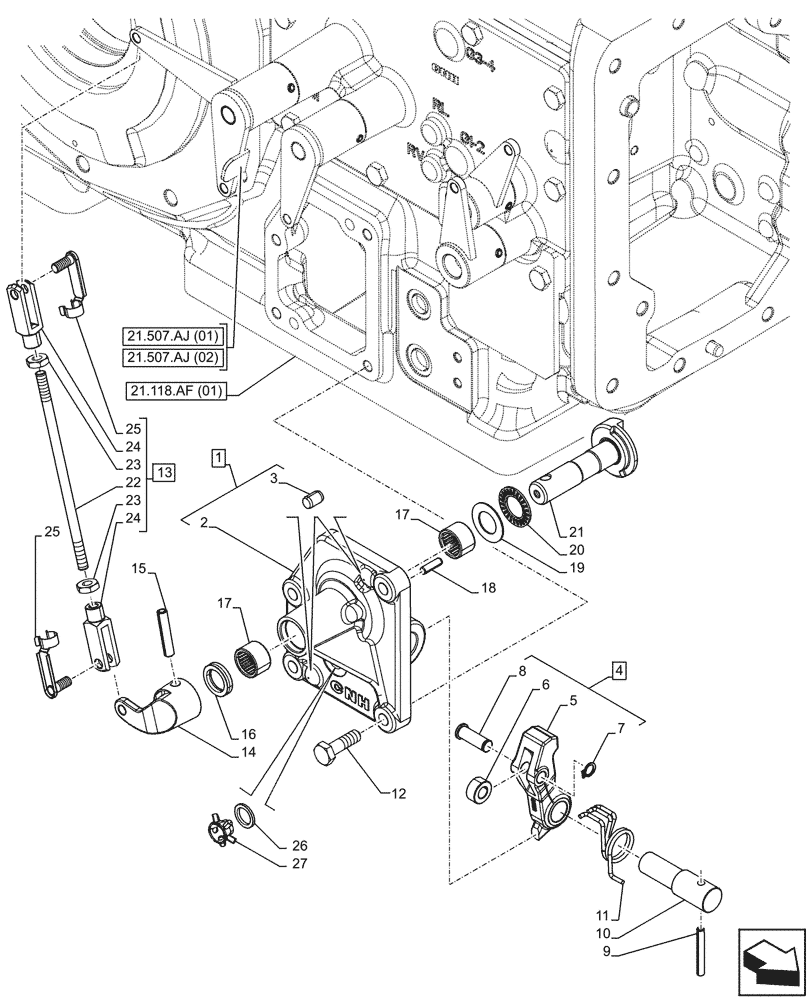

Схема запчастей Case IH FARMALL 105C - (33.110.AP) - VAR - 743551 - PARKING BRAKE, CONTROL LEVER (33) - BRAKES & CONTROLS
21.507.aj (01)
22
1
2
12
25
25
24
24
17
17
14
23
15
18
23
27
10
9
16
7
6
20
11
19
8
13
4
26
3
21
5
21.118.af (01)
21.507.aj (02)

Артикул

Название

Примечание

Количество

1

48139145

ASSY w Hole for Sensor, Incl 2, 3, Serial Range: -C7470

SUPPORT

1шт.

1

47520715

SUPPORT

ASSY w/o Hole for Sensor, Incl 2, 3, Start Serial: D7470

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

47520718

LEVER

Assy, Incl 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

6

84236176

ROLLER,20mm OD x 9.5mm L

1шт.

7

11065976

CIRCLIP,M10, Ext

1шт.

8

47520803

PIN,10mm OD x 29.3mm L

1шт.

9

412660

PIN,6mm OD x 45mm L, Slotted

1шт.

10

47368341

PIN,18mm OD x 76mm L

1шт.

11

84392531

SPRING,Torque, 30mm OD x 44mm L

1шт.

12

15970931

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9

4шт.

13

47674329

TIE-ROD

ASSY, Incl 22 - 25

1шт.

14

84521879

LEVER

1шт.

15

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

16

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

1шт.

17

596031

NEEDLE BEARING,Needle, 20mm ID x 16mm OD x 16mm W

2шт.

18

10336210

DOWEL,M6 x 20

1шт.

19

84381305

WASHER,20mm ID x 35mm OD

1шт.

20

84236170

ROLLER BEARING,20mm ID x 35mm OD x 2mm W

1шт.

21

47542663

BRAKE CAM

1шт.

22

47674328

TIE-ROD

1шт.

23

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

24

5154646

CLEVIS,M8

2шт.

25

5154438

PIN,8mm OD x 19mm L

2шт.

26

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

Valid Only With Support 48139145

1шт.

27

1030611

TUBE ASSY.

1шт.

Valid Only With Support 48139145

1шт.
