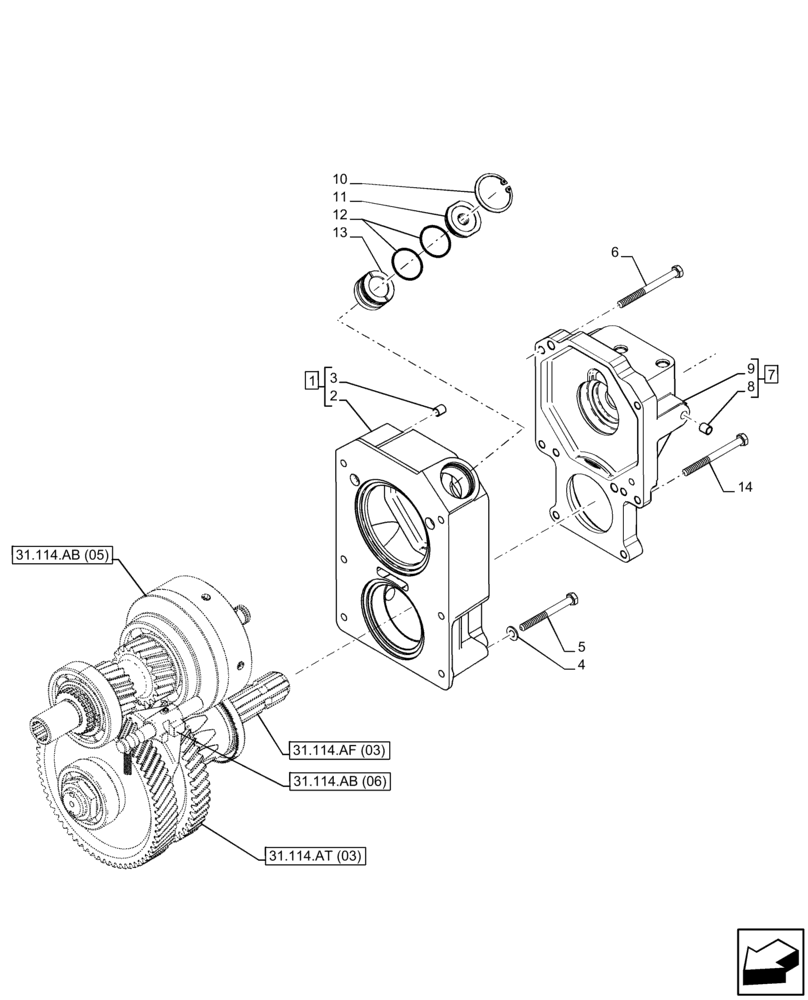

Запчасти Case IH FARMALL 105C (31.114.AH[03]) - VAR - 743566 - PTO, COVER, HI-LO (540/540E RPM) (31) - IMPLEMENT POWER TAKE OFF

1

84574400

COVER

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 1

1шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

6

16046121

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

7

84574424

COVER

ASSY, Incl 8, 9

1шт.

8

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

9

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 7

1шт.

10

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

11

84344468

BRAKE SHOE

1шт.

12

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

2шт.

13

84344461

BRAKE SHOE

1шт.

14

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.
