(31.110.AP[03]) - VAR - 743565 - PTO, OUTPUT, SHAFT, CAB (540 RPM)

Запчасти Case IH FARMALL 105C (31.110.AP[03]) - VAR - 743565 - PTO, OUTPUT, SHAFT, CAB (540 RPM) (31) - IMPLEMENT POWER TAKE OFF

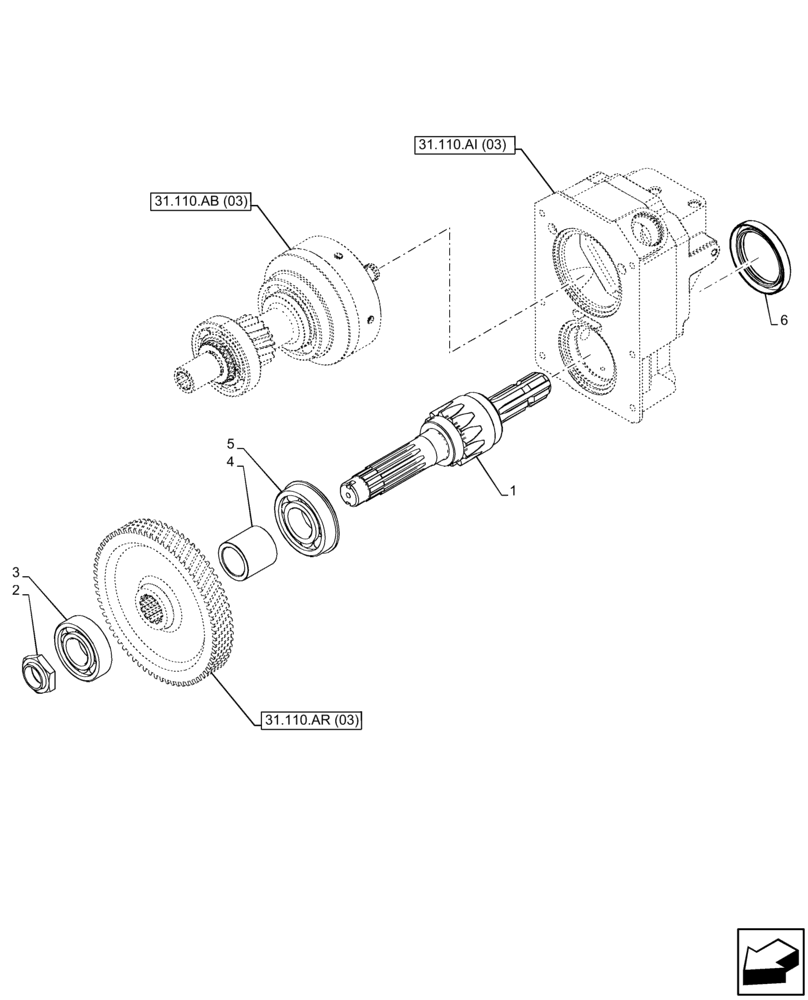

Схема запчастей Case IH FARMALL 105C - (31.110.AP[03]) - VAR - 743565 - PTO, OUTPUT, SHAFT, CAB (540 RPM) (31) - IMPLEMENT POWER TAKE OFF
2
31.110.ar (03)
1
4
3
5
31.110.ai (03)
6
31.110.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84351825

SHAFT,355.5mm L

1шт.

2

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

3

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

4

5168235

SPACER,38mm ID x 52mm OD x 50mm L

1шт.

5

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

6

84357623

SEAL,67.9mm ID x 95mm OD x 12mm Thk

1шт.

Выбрано товаров: 6
