Запчасти Case IH FARMALL 105C (27.120.AI[08]) - VAR - 333411 - FINAL DRIVE HOUSING, LH, 4WD, HI-LO (27) - REAR AXLE SYSTEM

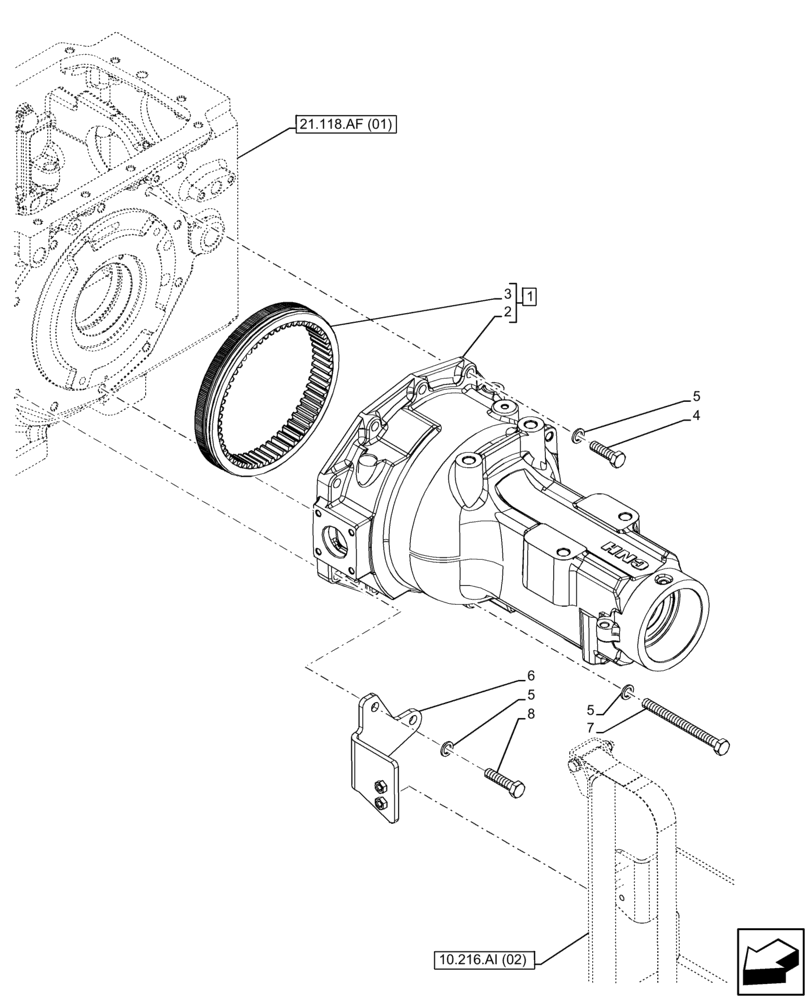

Схема запчастей Case IH FARMALL 105C - (27.120.AI[08]) - VAR - 333411 - FINAL DRIVE HOUSING, LH, 4WD, HI-LO (27) - REAR AXLE SYSTEM
8
3
10.216.ai (02)
4
1
5
5
7
21.118.af (01)
6
5
2

Артикул

Название

Примечание

Количество

1

47368388

AXLE HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362014

GEAR,60T

1шт.

4

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

6шт.

5

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

10шт.

6

47516328

PLATE

1шт.

7

15978721

BOLT,Hex, M14 x 1.5 x 160mm, Cl 8.8

2шт.

8

15977531

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

M14 x 1.5 x 60 8.8 DAC DIN

2шт.

Выбрано товаров: 8
