(25.108.AN[05]) - VAR - 337323 - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD, HEAVY DUTY

Запчасти Case IH FARMALL 105C (25.108.AN[05]) - VAR - 337323 - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

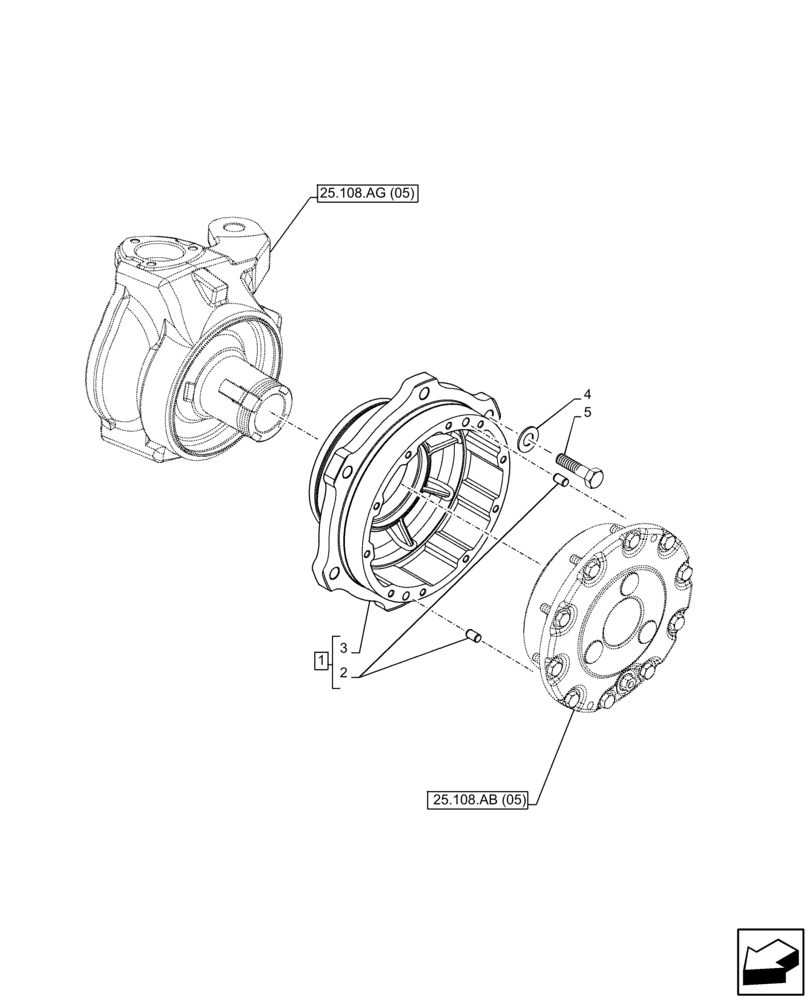

Схема запчастей Case IH FARMALL 105C - (25.108.AN[05]) - VAR - 337323 - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM
4
3
2
5
25.108.ab (05)
25.108.ag (05)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198496

HUB

ASSY, Incl 2, 3

1шт.

2

4988170

PIN,10mm OD x 20mm L

10 x 20

2шт.

3

5198480

HUB

1шт.

4

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

6шт.

5

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

6шт.
