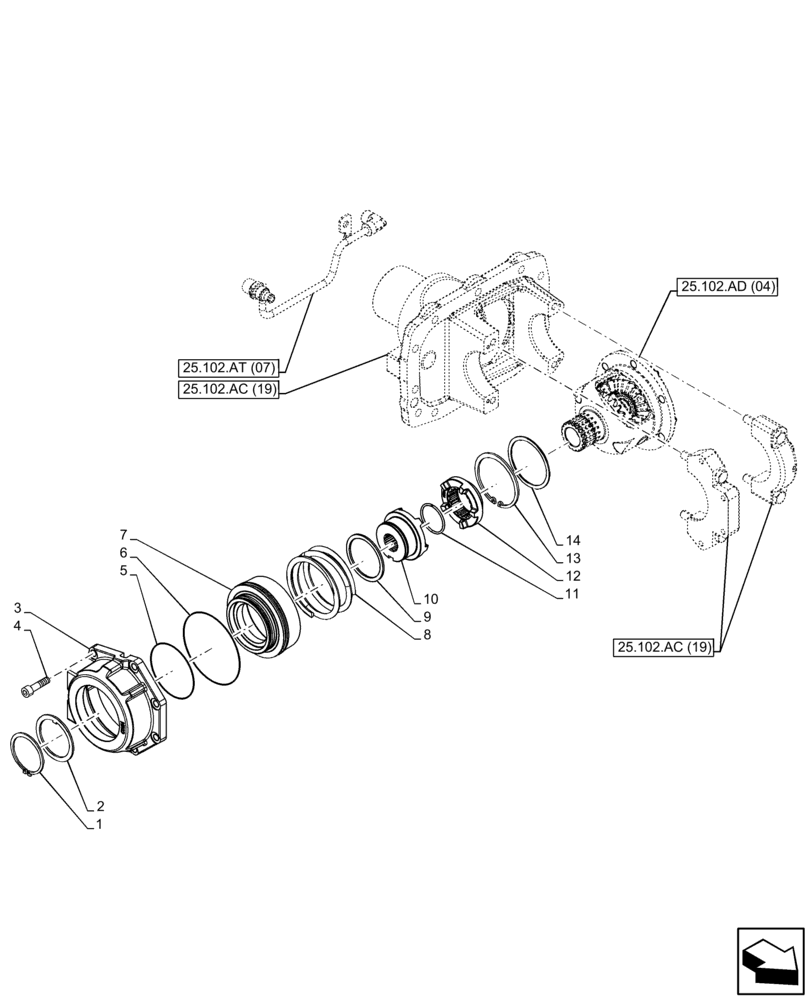

Запчасти Case IH FARMALL 105C (25.102.AS[02]) - VAR - 337323 - DIFFERENTIAL LOCK, CONTROLS, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

1

11070076

SNAP RING,M65, Ext

1шт.

2

5167748

THRUST WASHER,65.2mm ID x 80mm OD x 3mm Thk

1шт.

3

47123536

BELL HOUSING

1шт.

4

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.

5

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

1шт.

6

14466581

O-RING,117.07mm ID x 4.887" OD x 3.53mm

1шт.

7

5167749

PISTON

1шт.

8

5167827

SPRING,Compression, 110mm OD x 75mm L

1шт.

9

5167763

THRUST WASHER,67.5mm ID x 80mm OD x 2.8mm Thk

1шт.

10

87642726

SPLINED COUPLING,10T

1шт.

11

5167721

SNAP RING,M50, Int

1шт.

12

5167764

SLEEVE,50mm ID x 80mm OD x 29mm L

1шт.

13

11062476

SNAP RING,M90, Int

1шт.

14

5167761

SHIM,2.00mm Thk

1шт.
