Запчасти Case IH FARMALL 105C (21.135.AQ[04]) - VAR - 391069 - TRANSMISSION LUBRICATION LINE, HI-LO (21) - TRANSMISSION

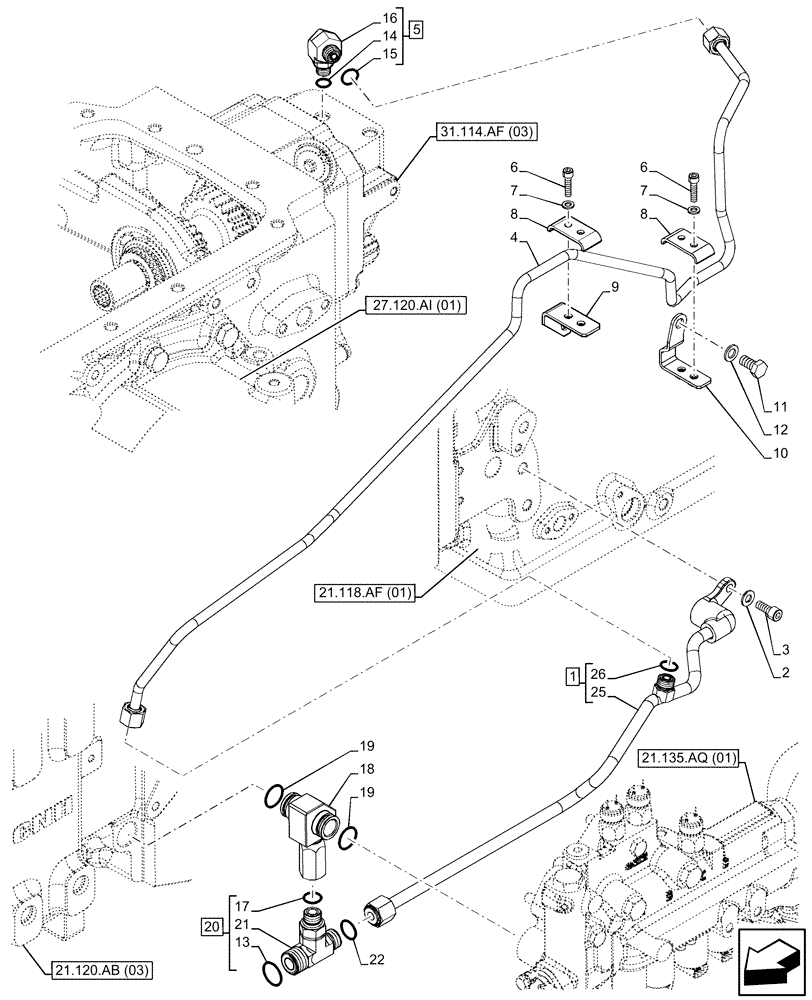

Схема запчастей Case IH FARMALL 105C - (21.135.AQ[04]) - VAR - 391069 - TRANSMISSION LUBRICATION LINE, HI-LO (21) - TRANSMISSION
27.120.ai (01)
8
18
1
13
15
21
25
4
6
16
10
9
26
7
22
6
19
8
19
14
5
2
12
17
7
11
20
3
21.118.af (01)
31.114.af (03)
21.120.ab (03)
21.135.aq (01)

Артикул

Название

Примечание

Количество

1

47627269

PIPE

Lubrication, ASSY, Incl 25, 26

1шт.

2

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

3

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

4

47627272

PIPE

Lubrication

1шт.

5

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 14 - 16

1шт.

6

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

4шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

5шт.

8

84418577

BRACKET

2шт.

9

84401545

BRACKET

1шт.

10

47577314

BRACKET

1шт.

11

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

12

12638621

WASHER,M10 x 18 x 2

1шт.

13

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

84601741

FITTING,M18 x 1.5

1шт.

19

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

20

87616588

HYD CONNECTOR,13/16" - 16 ORFS x 1 - 14 ORB

ASSY, Incl 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

Tee, Incl in 20

1шт.

22

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

25

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
