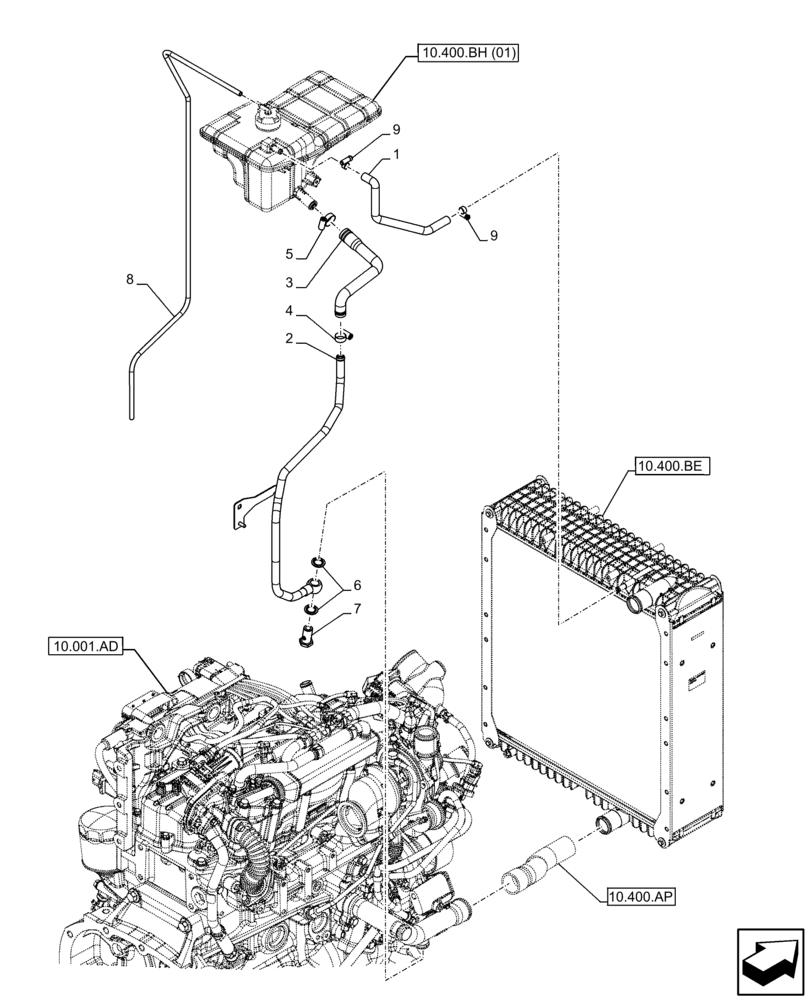

Запчасти Case IH FARMALL 105C (10.400.AK) - VAR - 391013 - EXPANSION TANK, HOSE (10) - ENGINE

1

84426316

FLEXIBLE HOSE,9mm ID

Expansion Tank to Radiator

1шт.

2

84333477

TUBE

Engine to Expansion Tank

1шт.

3

84426317

TUBE

Engine to Expansion Tank

1шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

16 x 25mm Stl Znd

1шт.

5

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

20 x 32mm Stl Znd

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

7

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

8

84426318

FLEXIBLE HOSE,7.5mm ID x 1257mm L

Exhaust Pipe

1шт.

9

13000190

HOSE CLAMP,M10-16

2шт.
